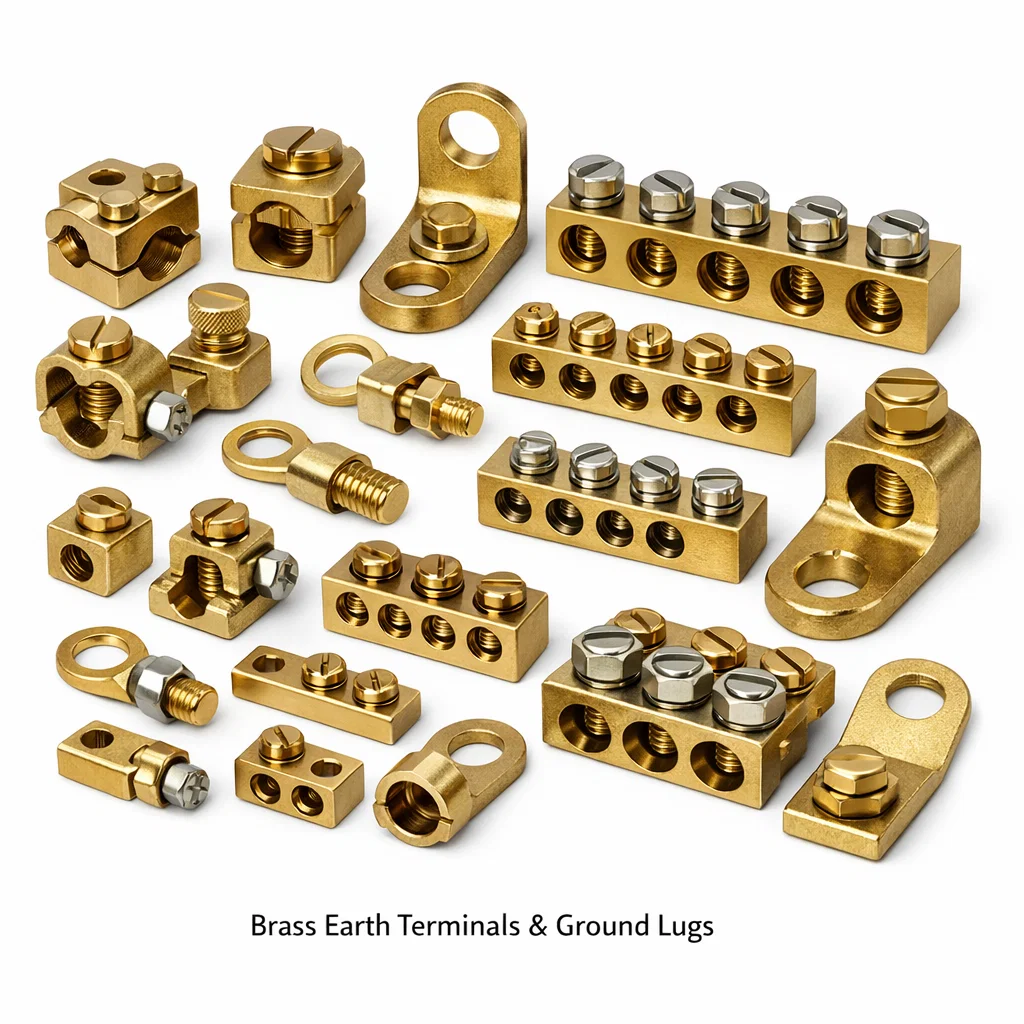

Brass Earth Terminals & Ground Lugs

Jamnagar Brass Components manufactures brass earth terminals, earth bars, and ground lugs for panel earthing and switchgear grounding applications. Our brass earth terminals provide reliable, low-resistance connections between equipment frames, cable shields, and the protective earth system of industrial and commercial electrical installations.

Types of Brass Earth Terminals

Our range includes DIN rail earth terminal blocks for EN 60715 DIN rail, chassis earth tags and terminal lugs with M4, M5, M6, and M8 holes, earth bar connectors and bridge links, cable lug connectors for cable screen and armour grounding, earth bolt kits with brass stud and star washer, and custom panel earth bars drilled and tapped to buyer specifications.

Materials and Construction

Our brass earth terminals are made from CZ121 / C36000 free-machining brass for excellent electrical conductivity (26% IACS) and corrosion resistance. Stainless steel (AISI 304/316) fasteners provide corrosion resistance in demanding panel environments. Tin plating on contact surfaces prevents oxidation and maintains low contact resistance throughout the service life.

Standards and Applications

Our earth terminals meet the requirements of IEC 60947-7-1 and IEC 61439. Applications include electrical control panels and MCCs, switchgear and distribution board earthing, machine tool and automation equipment earthing, and industrial building earthing installations.

Quality and Certifications

Contact resistance is measured and certified per IEC standards. All terminals are 100% continuity tested per lot. Our quality management system is certified to ISO 9001:2015. RoHS and REACH compliance declarations are provided with all shipments.

Why Choose Jamnagar Brass Components?

We supply brass earth terminals to panel builders, switchgear manufacturers, and electrical wholesale distributors across the USA, UK, and Middle East. Competitive India pricing, ISO 9001 certification, and established export experience make us a reliable long-term supply partner. Contact us for a quotation on standard or custom brass earth terminal designs.

Frequently Asked Questions — Brass Earth Terminals & Ground Lugs

Q1: What is a brass earth terminal?

A brass earth terminal (also called a grounding lug or earth lug) is a connector used to provide a reliable, low-resistance connection between electrical equipment enclosures, panels, and the grounding system. Brass earth terminals are bolted to equipment chassis and connected to the grounding conductor, ensuring that fault currents have a safe path to earth and that enclosures remain at ground potential for personnel safety.

Q2: What types of brass earth terminals are available?

Types include panel earth terminal blocks (for mounting on DIN rail), earth bonding bolts (threaded stud with washer and nut), cable lug earth terminals, star-washer earth terminals for sheet metal bonding, equipment bonding connectors, butt-type earth connectors, and chassis earth terminals with solder or crimp tail. Custom earth terminals to OEM panel drawings are also manufactured.

Q3: Why is brass used for earth terminals rather than steel?

Brass is preferred for earth terminals because it has significantly higher electrical conductivity than steel (about 27% IACS vs. 10% IACS), excellent corrosion resistance, good machinability for complex terminal geometries, and low contact resistance at the mating interface. Brass earth terminals do not rust or corrode in humid industrial environments, maintaining reliable low-resistance earth connections throughout equipment service life.

Q4: What standards govern brass earth terminals for electrical panels?

Brass earth terminals for panels must comply with IEC 60947-7-2 (terminal blocks for protective earth conductors), IEC 60529 (IP rating for panel protection), and BS EN 60947 series. In the USA, NEC Article 250 governs grounding and bonding equipment requirements, with UL 467 covering grounding and bonding fittings. IEC 62561 covers earth termination components for lightning protection systems.

Q5: What is the contact resistance requirement for earth terminals?

Earth terminal contact resistance should be below 1 milliohm (mΩ) for primary bonding connections and below 10 mΩ for equipment chassis bonding, per IEC 60947-7-2 type test requirements. Low-resistance earth connections are critical for minimising the let-through energy during fault conditions and ensuring correct operation of protective devices. Tin-plated brass terminals achieve typical contact resistance of 0.1–0.5 mΩ at rated torque.

Q6: What conductor sizes do brass earth terminals accommodate?

Brass earth terminals are available for conductor sizes from 1.5 mm² (small equipment bonding) to 240 mm² (main earth bonding in large panels and switchgear). Standard earth terminal blocks cover 4, 6, 10, 16, 25, 35, 50, and 70 mm² conductor cross-sections. Heavy-duty earth bonding connectors for MV switchgear handle up to 240–400 mm² conductors with multiple parallel connections.

Q7: Can brass earth terminals be supplied with green/yellow identification?

Yes. Brass earth terminals can be supplied with green/yellow insulation sleeve or collar for identification per IEC 60446 (use of colours for identification of protective conductors). Earth terminal blocks are available in standard green/yellow, with the brass contact parts exposed for low-resistance connection. Custom colour coding and laser engraving of circuit identification on terminal blocks is available.

Q8: Are brass earth terminals suitable for marine and offshore applications?

Yes. Brass earth terminals with dezincification-resistant (DZR) alloy or silicon bronze construction are specified for marine and offshore electrical installations where seawater corrosion resistance is essential. DNV GL, Lloyd’s Register, ABS, and Bureau Veritas type-approved earth terminals are available for marine switchboard and control panel applications. Nickel or silver plating enhances corrosion resistance for offshore service.

Q9: What plating is used on brass earth terminals?

The most common plating on brass earth terminals is tin plating (5–10 µm) which provides low contact resistance, protects against tarnishing, and is compatible with both copper and aluminium conductors. Nickel plating is used for harsh environments. Silver plating (10–20 µm) is specified for high-current bus earth connections requiring minimum contact resistance. Un-plated bright brass is also common for indoor installations.

Q10: What is the lead time and minimum order for brass earth terminals?

Standard catalogue earth terminal blocks and earth bonding connectors are available in 1–2 weeks. Custom machined earth terminals to OEM drawing: 3–5 weeks first article, minimum 100 pieces production. High-volume OEM supply (above 5,000 pieces/month): dedicated production with 2–3 weeks lead time on blanket order call-offs. Annual blanket purchase orders with monthly delivery are available for panel builder customers.
