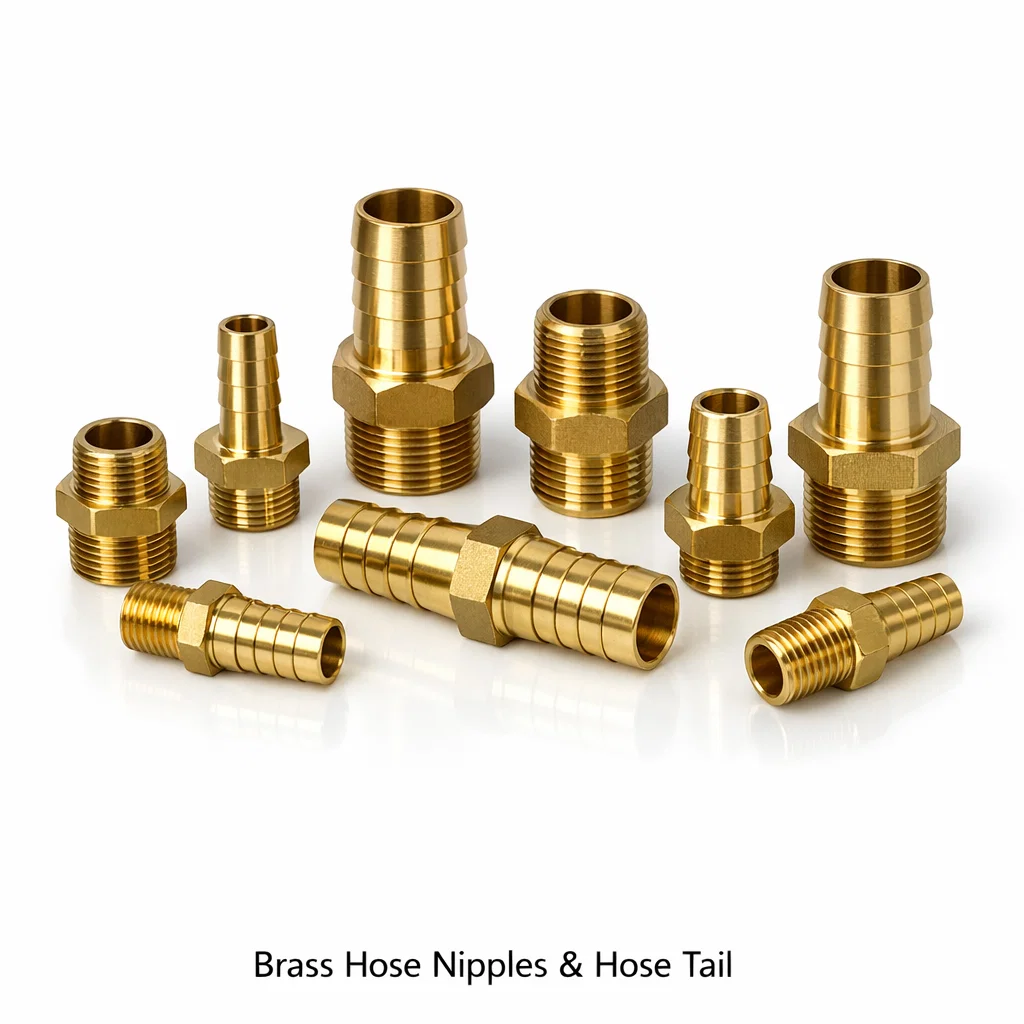

Brass Hose Nipples & Hose Tails

Jamnagar Brass Components is a leading manufacturer and exporter of brass hose nipples and brass hose tails in all major thread standards — BSP (BSPP), BSPT, and NPT — for the USA, UK, European, Australian, and global markets. Our hose nipples are precision CNC-machined from high-quality free-machining brass (CZ121 / C36000) and available in straight, reducing, and elbow configurations with barb diameters sized to standard hose IDs from 3/16 inch (5 mm) up to 2 inch (50 mm). Whether you need a straight BSP hose tail for a hydraulic assembly or an NPT swivel hose barb for an agricultural irrigation system, we can machine, finish, and export to your specification.

Understanding Thread Standards for Hose Nipples

Choosing the correct thread standard is the most critical specification decision for any hose nipple or hose tail. The three major international systems are:

• BSP (British Standard Pipe Parallel, BSPP / G-thread): Parallel thread used throughout the UK, Europe, Australia, Asia, and much of the Middle East. The thread alone does not seal — an O-ring face seal or bonded washer on the parallel thread provides pressure tightness. Thread dimensions per ISO 228-1 / BS 2779.
• BSPT (British Standard Pipe Taper): Tapered thread (1:16 taper) providing interference sealing when tightened with PTFE tape or thread sealant. Used in UK and Asian markets, particularly for gas and pneumatic fittings. Dimensions per ISO 7-1 / BS 21.
• NPT (National Pipe Taper, American): The US standard tapered pipe thread (1:16 taper, 60° flank angle) per ASME B1.20.1. Seals by thread interference with PTFE tape or pipe compound. Used throughout North America, Latin America, and some Asian markets. The related NPTF (Dryseal) form per ASME B1.20.3 provides a metal-to-metal seal without compound.

Brass Alloy Grades for Hose Nipples — International Equivalents

Grade Name	UNS (USA)	EN (Europe)	BS (UK)	IS (India)	Composition
Free-Machining Brass	C36000	CW603N / CW614N	CZ121	IS 319 Gr.1	61.5Cu–35.5Zn–3Pb
DZR Brass (Hot Water)	C35330	CW602N	CW602N	—	61Cu–37Zn–2Pb–0.07As
Naval Brass	C46400	CW712R	CZ112	IS 291 NB	60Cu–39.2Zn–0.8Sn
Low-Lead (NSF 372)	C69300	CW724R	—	—	63.5Cu–Bal.Zn–0.09Pb–Si
Forging Brass	C37700	CW608N	CZ122	IS 291 HT	60Cu–38Zn–2Pb

Types of Brass Hose Nipples & Hose Tails We Manufacture

Straight Brass Hose Tails (BSP, NPT, BSPT)

Straight brass hose tails with hexagonal body, threaded male end (BSP parallel, BSP taper, or NPT), and smooth or ribbed hose barb tail in sizes from 1/8 inch to 2 inch nominal thread. The standard configuration for hose-to-fitting connections in plumbing, hydraulics, and pneumatics. Available with single, double, or triple barbs for enhanced hose retention.

Reducing Brass Hose Nipples

Reducing hose nipples with one thread size and a different barb diameter, or with two different thread sizes — commonly used to connect a 3/4 inch BSP fitting to a 1/2 inch hose, or an NPT male thread to a metric hose barb. We machine reducing hose nipples in any combination of thread type and barb/hose diameter to custom drawings.

Elbow (90°) Brass Hose Tails

90-degree elbow hose tails for right-angle hose routing in confined equipment spaces. Available with BSP or NPT thread entry and smooth or barbed hose tail exit. Commonly used in hydraulic power unit manifolds, engine cooling systems, and industrial machine tool coolant circuits.

45-Degree Brass Hose Tails

45-degree angled brass hose tails provide a gentle hose bend radius where a 90-degree elbow would kink the hose or exceed the minimum bend radius. Particularly useful in fuel system and air intake plumbing where smooth flow transitions are required.

Swivel Hose Tails

Swivel hose tails (rotating hose ends) with a captive hex nut that rotates independently of the barb body, allowing the threaded end to be tightened onto a fixed port without twisting the hose. Used in hydraulic hose assemblies and agricultural irrigation fittings where hose routing prevents rotation of the complete fitting.

Brass Hose Nipple-to-Nipple Connectors

Double-barb or double-threaded hose nipples connecting two hoses or two threaded ports — also called hose couplers, straight connectors, or equal tees (T-hose nipple). Used in compressed air systems, water supply manifolds, and garden and agricultural irrigation lines.

Brass Hose Tail Assemblies with Hose Clamp Grooves

Hose tails with machined hose clamp grooves (for spring clamps or Jubilee clips) on the barb, preventing the clamp from slipping during assembly and providing positive retention at the clamp seating position. Commonly specified for food and beverage, pharmaceutical, and high-vibration industrial applications.

Applications of Brass Hose Nipples & Hose Tails

• Industrial hydraulic and pneumatic hose assemblies
• Agricultural and garden irrigation systems
• Automotive cooling system and heater hose connections
• Marine fresh water and raw water plumbing
• Compressed air distribution systems
• Chemical dosing and transfer lines (with compatible hose)
• Plumbing — hot and cold water supply connections
• Gas appliance flexible hose connections (with appropriate alloy)

BSP vs NPT — Key Differences Explained

Parameter	BSP Parallel (BSPP/G)	BSPT (Taper)	NPT (American Taper)
Thread angle	55°	55°	60°
Taper	None (parallel)	1:16	1:16
Standard	ISO 228-1 / BS 2779	ISO 7-1 / BS 21	ASME B1.20.1
Sealing method	Face seal / O-ring	Thread interference + sealant	Thread interference + PTFE/compound
Primary market	UK, Europe, Asia, Australia	UK, Asia	USA, Canada, Latin America
Interchangeable with NPT?	No	No	—

Why Choose Jamnagar Brass Components for Hose Nipples & Hose Tails?

• Multi-standard machining — BSP, BSPT, NPT, NPTF, metric, and UNF thread forms in one facility
• Thread gauging on 100% of threaded parts — NPT and BSP plug and ring gauges used in production
• Free-machining brass CZ121/C36000 — fastest machining, tightest tolerances, best surface finish
• DZR and NSF 372 lead-free alloys — available for hot water and US potable water compliance
• Custom barb diameters — any hose ID from 3/16 inch to 2 inch, metric or imperial
• ISO 9001:2015 certified — full traceability and dimensional inspection reports
• Plating options — nickel, tin, chrome available on all hose fitting types
• Competitive India pricing — 40–60% cost savings vs. US and European domestic sourcing

Frequently Asked Questions — Brass Hose Nipples & Hose Tails

Q1: What is the difference between a hose nipple and a hose tail?

The terms are used interchangeably in most markets. “Hose tail” is the more common UK and European term; “hose nipple” or “hose barb fitting” is more common in the USA. Both describe a fitting with a threaded male end on one side and a barbed tail (one or more ribs that grip the hose bore) on the other. The barb prevents the hose from pulling off under pressure or vibration.

Q2: Can BSP and NPT hose nipples be interchanged?

No. BSP and NPT threads are not interchangeable. BSP threads have a 55-degree flank angle and thread pitch measured in threads per inch to the BSP series (e.g. 14 TPI for 1/2 inch). NPT has a 60-degree flank angle with a different pitch series. Attempting to thread a BSP fitting into an NPT port will result in cross-threading or leakage. Always verify the thread standard on both the fitting and the mating port before specifying.

Q3: What barb diameter should I specify for a 1/2 inch ID hose?

For a hose with 1/2 inch (12.7 mm) internal diameter, specify a barb outer diameter of 12.7 to 13.5 mm — a slight interference fit of 0.5 to 0.8 mm is standard to ensure the hose is gripped without tearing. For soft silicone or thin-wall hose, keep interference minimal (0.3 to 0.5 mm). For reinforced hydraulic hose, a full 1 mm interference is typical. We machine barb ODs to your specified hose ID plus the required interference.

Q4: What pressure rating do brass hose nipples have?

Pressure rating depends on the hose clamp, hose type, and temperature. The brass hose tail body itself, machined from C36000 free-machining brass, is rated to at least 150 psi (10 bar) at ambient temperature in water service, and 200 psi (14 bar) in compressed air — well in excess of most hose assembly ratings. For high-pressure hydraulic applications above 300 psi, crimped hydraulic hose end fittings replace push-on barb tails.

Q5: Do you supply BSP hose tails with swivel nuts?

Yes. Swivel hose tails with a captive BSPP hex nut (rotating female BSP parallel thread) are a standard product. The swivel nut tightens onto an external BSP boss or parallel male port without rotating the hose barb body, simplifying installation in tight spaces. We also supply straight stud-end hose tails (male BSP or NPT) for screwing directly into female threaded ports.

Q6: What hose clamp groove standards do you machine?

We machine hose clamp grooves to DIN 2817 (for European spring band clamps), and custom groove profiles for worm-drive Jubilee clips and American worm-gear hose clamps. Groove depth is typically 1.5 to 2.5 mm; groove width 3 to 6 mm depending on clip type. We advise on the groove geometry for the specific clamp type specified by the customer.

Q7: Is DZR brass required for hose nipples in hot water systems?

In the UK, Water Regulations require DZR (dezincification resistant) brass for fittings in hot water systems above 60°C, and for any situation with low-velocity or stagnant water. The DZR alloy (CW602N per EN 12165) contains arsenic as a dezincification inhibitor and must pass BS ISO 6509 testing. For US hot water systems, standard C36000 brass is generally acceptable unless local code specifies otherwise, though DZR is available on request.

Q8: Can you supply NPT hose tails compliant with NSF 61 for potable water?

Yes. For US potable water applications subject to NSF/ANSI Standard 61 and NSF 372 (maximum 0.25% lead weighted average), we supply hose tails in low-lead brass alloy C69300 (EcoSmart) or C87850 (silicon-zinc brass). Material Test Certificates confirming lead content below 0.25% are provided. Full NSF 372 product listing is the customer’s responsibility as the product manufacturer.

Q9: What thread tolerance class do you machine NPT threads to?

We machine NPT threads per ASME B1.20.1 to standard commercial tolerance. All NPT threaded ends are 100% gauge-checked with ASME-compliant NPT plug and ring gauges. For NPTF (Dryseal) threads requiring a metal-to-metal seal without compound, we machine to ASME B1.20.3 NPTF tolerance and gauge with NPTF gauges. NPTF gauging records are available on request.

Q10: What is the minimum order quantity for custom brass hose tails?

For standard sizes (1/8 inch to 1 inch BSP or NPT with standard barb diameters) from our established range: minimum 100 pieces. For custom sizes, non-standard barb diameters, or special alloys: minimum 250 to 500 pieces for the first production run. Prototype samples of 10 to 25 pieces are accepted at prototype pricing for first-article approval before production commitment.

Q11: Do you supply hose tails in stainless steel as well as brass?

Yes. We machine hose tails and hose nipples in SS 316L for chemical, pharmaceutical, food processing, and marine applications where brass is not appropriate. SS 316L hose tails are available in BSPP, NPT, and metric thread forms with electro-polished or passivated finish. Stainless hose tails cost approximately 3 to 4× the equivalent brass fitting but offer superior corrosion resistance in aggressive media.

Q12: What is your lead time and export process for brass hose tails to the USA?

For standard sizes in stock: ex-factory within 5 to 7 working days, air freight to US door in 3 to 5 days (total approximately 10 to 12 days). For custom or non-standard sizes: 2 to 4 weeks production, then 3 to 5 days air freight. Sea freight (18 to 25 days to US West Coast) is available for large volume orders. We handle all export documentation including commercial invoice, packing list, certificate of origin, and HS code 7412.20 (brass pipe fittings).
