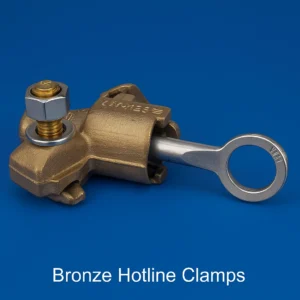

Bronze Hotline Clamps

Bronze Hotline Clamps, Bronze Hotline Clamps in India

Overview & Usage
Bronze Hotline Clamps are used in overhead power distribution and transmission networks for live-line operations. They provide a safe, secure, and highly conductive connection between a main conductor (run) and a branch/tap conductor—without requiring the line to be de-energized. We are an Indian manufacturer and supplier of Bronze hotline clamps, Aluminum Hotline clamps, Liveline clamps, Bronze taps, Aluminum taps.

They are widely applied in:

• Utilities and power companies for distribution lines.
• Substations and switchyards for tapping busbars.
• Emergency repairs and live maintenance works.

Construction & Design

• Clamp Body: High-strength Bronze casting for mechanical durability and excellent electrical conductivity.
• Keeper / Jaw: Bronze with grooved profile to grip conductors securely.
• Hardware: Heavy-duty Stainless Steel (AISI 304/316) bolts, nuts, and washers for corrosion resistance and long service life.
• Surface Finish: Available plain (natural bronze) or tin/silver plated to enhance conductivity and prevent surface oxidation.
• Design Features:
  • Extended jaw width to increase contact area, reducing heating.
  • Smooth radius edges to prevent conductor damage.
  • Spring washers for vibration resistance and to maintain pressure.

Material Grades

• C83600 (Leaded Red Bronze) – Excellent machinability, standard clamp body alloy.
• C95500 / C95510 (Nickel Aluminum Bronze) – Superior strength and corrosion resistance for heavy duty use.
• C95200 (Aluminum Bronze) – Strong, wear resistant, commonly used for high-tension clamps.
• Stainless Steel 304/316 – For bolts, nuts, washers, and eyebolts.

Typical Sizes & Code Numbers

Code No.	Run Conductor Range	Tap Conductor Range	Body Material	Hardware	Remarks
BHC-101	16 – 35 mm²	10 – 25 mm²	Bronze (C83600)	SS 304	Service taps
BHC-102	35 – 70 mm²	16 – 35 mm²	Al-Bronze (C95200)	SS 304	Medium jumper connections
BHC-103	70 – 120 mm²	25 – 70 mm²	Ni-Al Bronze (C95500)	SS 316	Distribution line
BHC-104	120 – 240 mm²	50 – 120 mm²	Bronze + Tin Plated	SS 316	Substation busbars
BHC-105	240 – 400 mm²	70 – 185 mm²	Nickel Al-Bronze	SS 316	Extra high-voltage / Heavy duty

(Code numbers are customizable for your product line; “BHC” stands for Bronze Hotline Clamp.)

Performance Features

• High conductivity due to bronze body with optional tin/silver plating.
• Corrosion resistant with stainless steel hardware, suitable for outdoor and coastal environments.
• Uniform pressure ensures secure grip and minimizes cold flow of conductor.
• Compliant with ANSI C119.4 standards for electrical connectors.
• Easy live-line installation with hot-stick compatible design.

Applications & Advantages

• Live-line tapping without power interruption.
• Branching or extending distribution feeders.
• Secure tap connections in substations.
• Long service life with minimal maintenance.

Advantages of Bronze vs. Aluminum clamps:

• Higher mechanical strength and hardness.
• Better wear resistance in repeated tightening/loosening.
• More stable electrical contact under load cycles.
• Naturally more resistant to spark erosion and arcing.

Frequently Asked Questions — Bronze Hotline Clamps

Q1: What is a bronze hotline clamp?

A bronze hotline clamp (also called a live-line clamp or tap connector) is an electrical connector used on energised power lines to make a tap-off connection from a main distribution conductor without de-energising the line. They are used by utility lineworkers with hot stick tools at high voltage. Bronze is specified for hotline clamps because of its electrical conductivity, corrosion resistance, and mechanical strength suitable for outdoor utility service.

Q2: What bronze alloy is used for hotline clamps?

Hotline clamps are typically manufactured from silicon bronze (C65500/C87600) or aluminium bronze (C95400) due to their combination of electrical conductivity (7–10% IACS), high mechanical strength, and outstanding corrosion resistance in outdoor utility environments. Some designs use C83600 LG2 gunmetal for general purpose clamps. Silicon bronze is preferred for its good conductivity and weldability; aluminium bronze for maximum strength and seawater resistance.

Q3: What voltage classes do bronze hotline clamps cover?

Bronze hotline clamps are manufactured for distribution voltage classes from 11 kV to 245 kV (138 kV in USA). Standard voltage ratings include 11 kV, 22 kV, 33 kV, 66 kV, 132 kV, and 245 kV classes. Clearance requirements (creepage distance and flashover distance) increase with voltage class, determining the clamp body geometry and insulating hardware dimensions. High-voltage clamps (above 66 kV) require larger insulator-separated hardware.

Q4: What conductor sizes do bronze hotline clamps accommodate?

Bronze hotline clamps for distribution lines accommodate main conductors from 50 mm² ACSR (small distribution line) to 400 mm² ACSR or AAAC (large sub-transmission conductor). Clamp jaw dimensions and clamping force are designed for the specific conductor diameter range. Tap conductor connections typically accommodate 10–120 mm² copper or aluminium service cables. Custom clamp designs for special conductor types (ACSS, AACSR, CTC) are available.

Q5: What safety standards apply to hotline clamps?

Bronze hotline clamps for utility live-line work must comply with IEEE 1059 (guide for assembly and use of hotline tools), ANSI C119.4 (connectors for use between aluminium-to-aluminium and aluminium-to-copper conductors), and IEC 61284 (overhead lines — requirements and tests for fittings). Type testing includes current-carrying capacity (thermal cycling), mechanical pull-out strength, and corrosion resistance per applicable standard.

Q6: Are your bronze hotline clamps tested to IEEE or IEC standards?

Yes. Our bronze hotline clamps are type-tested to ANSI C119.4 (for USA utility market) and IEC 61284 (for international utility markets). Type test reports covering current-carrying capacity at rated current, thermal cycle testing, and mechanical strength are available for customers’ engineering review. Production testing includes dimensional inspection, torque verification of clamping hardware, and electrical resistance testing of clamp joints.

Q7: What hardware is included with bronze hotline clamps?

Standard bronze hotline clamp sets include: bronze main clamp body, stainless steel or silicon bronze clamping bolts and nuts, insulating eye-nut for hot stick engagement, stainless hardware for tap conductor connection, and installation instructions with torque specifications. Optional extras: span wire extension for deep-tap applications, bronze parallel groove insert for secondary conductor, and aluminium transition insert for aluminium main conductors.

Q8: Can bronze hotline clamps be used on aluminium conductors?

Yes. Bronze hotline clamps are compatible with both copper and aluminium main conductors. For aluminium conductors, a transition contact insert (aluminium-filled with contact grease) is placed between the bronze jaw and the aluminium conductor to prevent galvanic corrosion at the contact interface. Joint compound (inhibiting grease) is applied to the aluminium conductor surface before clamping to prevent oxide layer re-formation.

Q9: What is the contact resistance requirement for bronze hotline clamps?

Bronze hotline clamp contact resistance should not exceed the resistance of an equivalent length of the main conductor, per ANSI C119.4 and IEC 61284 performance criteria. Typical contact resistance for properly installed bronze hotline clamps is 10–50 µΩ, well within the equivalent conductor segment resistance. After installation, clamp joint resistance is verified by milliohm meter measurement before the hot stick tool is removed.

Q10: What is the minimum order and lead time for bronze hotline clamps?

Standard bronze hotline clamps for common distribution voltages (11–33 kV) and conductor sizes (95–240 mm² ACSR): 2–4 weeks. Non-standard voltage classes and special conductor types: 4–8 weeks. Custom designs with new tooling: 8–12 weeks. Minimum order: 10 sets for standard designs; 25 sets for non-standard. For utility projects with specific delivery requirements, early engagement and advance ordering are recommended to ensure on-time delivery.
