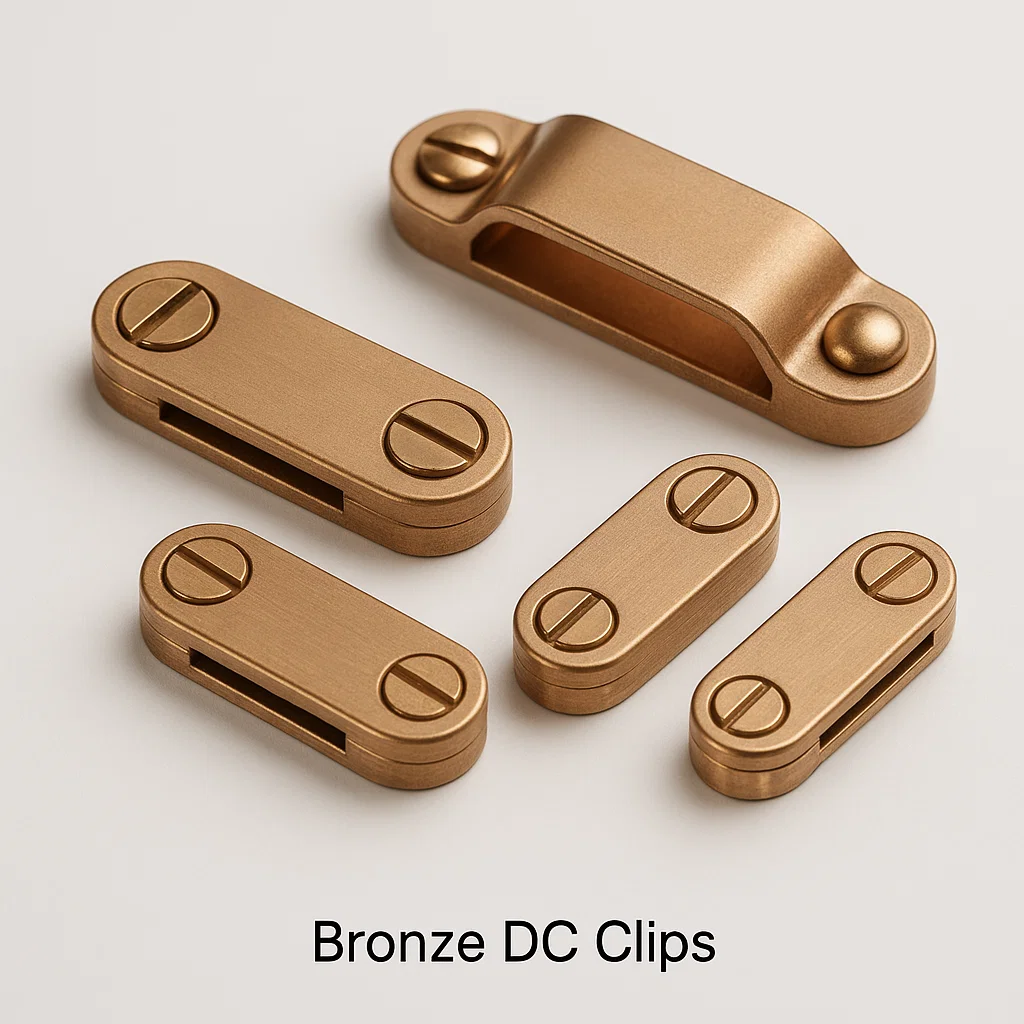

Bronze DC clips

Comprehensive Overview of Bronze DC Clips and Bronze Electrical Clips

We are one of the leading manufacturers and exporters of Bronze DC Clips, Bronze Electrical Clips, Bronze Spring Clips, Bronze Terminal Clips, and Bronze Contact Clips from India. We have been supplying high-quality bronze battery clips, bronze grounding clips, bronze busbar clips, bronze contact springs, bronze fuse clips, bronze motor brush clips, bronze connector clips, and custom bronze clips to the world market for many decades. Our state-of-the-art manufacturing facility specializes in producing premium bronze clips using advanced stamping and blanking, progressive die stamping, CNC wire forming, spring winding, heat treatment, electroplating, and comprehensive quality control systems. With over three decades of global experience in bronze clip manufacturing, we serve diverse industries including electrical and electronics (DC power systems, battery connections, electrical terminals), automotive and transportation (battery clips, starter motor brushes, alternator connections), renewable energy (solar panel connectors, wind turbine grounding, battery storage systems), telecommunications (DC power equipment, battery backup systems, grounding clips), industrial equipment (motor brush holders, switchgear contacts, control panels), marine and defense (naval electrical systems, military electronics, corrosion-resistant connections), railway and transit (DC traction systems, signaling equipment, grounding), and consumer electronics (battery contacts, charging systems, connectors). Our expertise encompasses working with various bronze alloys including Phosphor Bronze C51000 (excellent spring properties and electrical conductivity), Beryllium Bronze C17200 (highest strength and fatigue resistance), Tin Bronze C52100 (good conductivity and wear resistance), Silicon Bronze (corrosion resistance and moderate spring properties), Aluminum Bronze (high strength and conductivity), and custom bronze alloys meeting specific electrical and mechanical requirements. We manufacture bronze DC clips ranging from 5mm to 200mm length with thickness 0.3mm to 5mm, maintaining electrical conductivity 15-60% IACS, spring force 0.5N to 500N, excellent contact resistance <5 milliohms, current carrying capacity 1A to 500A, superior corrosion resistance, compliance with IEC, UL, SAE, MIL-SPEC, RoHS standards, and reliable long-term electrical and mechanical performance in DC power systems, battery applications, and industrial electrical equipment.

Types of Bronze DC Clips and Electrical Clips

Battery Terminal Clips (DC Power)

Design: Spring-loaded clips or clamps for battery terminal connections, alligator/crocodile clip style or flat terminal clamps, serrated jaws for secure contact, insulated or non-insulated handles. Sizes: Small clips for AA/AAA/9V batteries (5-15mm jaw), medium clips for automotive batteries (20-30mm jaw), large industrial battery clips (40-80mm jaw). Materials: Phosphor bronze C51000 for spring jaw and contact surfaces, tin plating or silver plating for low contact resistance. Applications: Automotive battery jumper cables and testing equipment, DC power supply connections, battery charger clips, industrial battery systems (UPS, telecom, data centers), portable equipment battery connections. Current Rating: 10A to 500A depending on size and design, contact resistance <5 milliohms for good electrical connection. Features: Strong spring force maintaining contact pressure 5-50N, corrosion-resistant plating (tin, nickel, silver), insulated handles for safety (500V-1000V rating).

Busbar Clips and Power Distribution Clips

Design: C-shaped or U-shaped clips securing to busbar rails, spring tension maintaining electrical contact, multiple contact points reducing resistance. Sizes: 10mm to 100mm width accommodating various busbar dimensions. Materials: Phosphor bronze for spring properties and conductivity 15-40% IACS, beryllium bronze for high-current applications requiring maximum spring force. Applications: Electrical panel busbar connections, switchgear and distribution boards, control panel DC power distribution, industrial electrical cabinets, railway traction substations. Current Rating: 20A to 500A depending on contact area and clip design. Features: Vibration-resistant spring design, multiple contact fingers increasing contact area, tin or silver plating reducing contact resistance <3 milliohms, flame-retardant insulation where required.

Motor Brush Clips and Brush Holders

Design: Spring clips holding carbon or graphite brushes against commutator, pigtail connection wire for external connection, adjustable tension maintaining brush contact pressure. Sizes: 5mm to 50mm brush dimensions accommodated. Materials: Phosphor bronze C51000 or beryllium bronze C17200 for constant spring force over life, tin or nickel plating preventing corrosion. Applications: DC motor brush holders (automotive starters, power tools, industrial motors), generator brush assemblies, traction motor brushes (trains, electric vehicles), wind turbine generator brushes. Spring Force: 2N to 50N maintaining consistent brush pressure as brush wears, critical for motor performance and brush life. Features: Constant force spring design compensating for brush wear, corrosion-resistant plating, insulated mounting where required, temperature resistance to 150°C.

Grounding Clips and Earth Clips

Design: Clips securing grounding wire to equipment chassis, panels, busbars, one-piece stamped design or multi-piece assembly, screw mounting or snap-on attachment. Sizes: 5mm to 50mm accommodating various wire and strap sizes. Materials: Tin bronze, phosphor bronze, or bare bronze maintaining low resistance ground path, tin plating for corrosion resistance and low contact resistance. Applications: Electrical equipment grounding, control panel earth connections, telecommunications equipment grounding, lightning protection system connections, bonding straps and braids. Contact Resistance: <5 milliohms ensuring effective ground path for safety and EMI reduction. Standards: IEC 61140 grounding requirements, NEC/UL grounding specifications, military MIL-B-3928 bonding clips.

Fuse Clips and Fuse Holders

Design: Spring clips holding cylindrical or blade fuses, contact surfaces optimized for low resistance, tension maintaining secure fuse retention and electrical contact. Sizes: Clips for 3AG, 5AG fuses (6.3mm × 32mm, 6.3mm × 20mm), automotive blade fuses (mini, standard, maxi), high-current fuses up to 100A. Materials: Phosphor bronze for spring properties, tin or silver plating for low contact resistance and corrosion protection. Applications: Automotive fuse boxes and panels, industrial control panels, DC power distribution fuse blocks, battery management systems, renewable energy inverters and charge controllers. Current Rating: 1A to 100A depending on fuse size and clip design. Features: Secure retention preventing fuse vibration loosening, low insertion/extraction force for easy fuse replacement, temperature rating 85°C-125°C.

Connector Clips and Contact Springs

Design: Various spring clip geometries for electrical connectors, cantilever springs, finger contacts, leaf springs, providing reliable electrical connection with wiping action. Sizes: 2mm to 30mm contact length, thickness 0.3mm to 2mm. Materials: Phosphor bronze C51000 standard, beryllium bronze C17200 for high cycle life applications (>100,000 insertions), gold plating over nickel for low-level signals. Applications: PCB edge connectors, battery contacts in consumer electronics, charging dock contacts, SIM card contacts, smart card readers, test fixture probes. Contact Force: 0.5N to 10N depending on application, designed for repeated insertion cycles 10,000-1,000,000 cycles. Features: Gold plating (flash gold 0.1-0.5µm or hard gold 1-2µm) for low contact resistance <50 milliohms, corrosion resistance, anti-tarnish properties.

Solar Panel and Renewable Energy Clips

Design: Clips for connecting solar panel frames to grounding systems, bonding clips for module frames, wire management clips, corrosion-resistant for outdoor exposure. Sizes: 10mm to 50mm accommodating various frame profiles and wire gauges. Materials: Tin bronze or silicon bronze for excellent outdoor corrosion resistance, stainless steel springs with bronze contacts, anodized aluminum bodies with bronze contact inserts. Applications: Solar PV panel grounding and bonding, wind turbine electrical connections, battery storage system connections, off-grid power system grounding. Corrosion Resistance: Salt spray test 1000+ hours per ASTM B117, suitable for coastal and marine environments. Standards: UL 2703 mounting systems and grounding, NEC Article 690 solar installation requirements.

Railway and Traction Clips

Design: Heavy-duty clips for DC traction systems (600V-1500V DC typical), pantograph contact strips, third rail connections, signaling system connections. Sizes: Large clips 50-200mm for high-current applications. Materials: Aluminum bronze or beryllium bronze for high strength and electrical conductivity, silver plating for low contact resistance in high-current applications. Applications: Railway electrification systems, metro and light rail traction power, overhead catenary system connections, third rail pickups, signaling and control system grounding. Current Rating: 100A to 2000A for traction power clips. Features: Vibration and shock resistance, weatherproof designs, corrosion resistance for outdoor exposure, compliance with railway electrical standards EN 50119, EN 50122.

Bronze Alloys for DC Clips

Phosphor Bronze C51000 (5% Sn, 0.2% P)

Composition: 94.8% Cu, 5% Sn, 0.2% P (phosphorus improves strength and spring properties). Properties: Tensile strength 380-520 MPa (cold worked), elongation 5-40% depending on temper, hardness 90-180 HV, electrical conductivity 15% IACS (8.7 MS/m), excellent spring characteristics (high yield strength and fatigue resistance). Spring Properties: Modulus of elasticity 110 GPa, yield strength 380-690 MPa (H04-H10 tempers), excellent relaxation resistance maintaining spring force over time. Applications: Most common alloy for electrical contact springs, battery clips, busbar clips, fuse clips, connector springs, general-purpose DC clips requiring good conductivity and spring properties. Cost: Baseline for comparison, economical for high-volume production. Processing: Excellent stamping and forming characteristics, cold working increases strength and spring properties, stress relief at 150-200°C prevents relaxation.

Beryllium Bronze C17200 (1.9% Be)

Composition: 98.1% Cu, 1.8-2.0% Be (beryllium). Properties: Tensile strength 1250-1450 MPa (peak aged condition), yield strength 1100-1250 MPa, hardness 360-410 HV, electrical conductivity 22-28% IACS (12-16 MS/m), highest strength of copper alloys. Spring Properties: Excellent fatigue resistance >10 million cycles, exceptional relaxation resistance, maximum spring force in compact designs, stable over temperature range -200°C to +300°C. Heat Treatment: Solution annealed then age hardened (315°C for 2-3 hours) achieving peak properties. Applications: High-performance connector contacts (>100,000 insertion cycles), high-current busbar clips, critical motor brush springs, aerospace and military electrical contacts, precision instruments. Cost: Premium 3-5× phosphor bronze, justified for demanding applications requiring maximum performance. Safety: Beryllium dust hazardous during machining (proper ventilation and controls required), finished parts safe to handle.

Tin Bronze C52100 (8% Sn)

Composition: 92% Cu, 8% Sn. Properties: Tensile strength 380-550 MPa, yield strength 275-480 MPa, hardness 120-200 HV, electrical conductivity 11% IACS (6.4 MS/m), good spring properties and wear resistance. Applications: Wear-resistant electrical contacts, sliding contacts in motors and generators, brush holders requiring wear resistance, heavy-duty battery clips, marine electrical clips (corrosion resistant). Advantages: Better wear resistance than phosphor bronze, superior corrosion resistance, good spring properties, non-magnetic. Cost: Comparable to phosphor bronze, slightly higher for premium applications.

Silicon Bronze C65500 (3% Si)

Composition: 97% Cu, 3% Si. Properties: Tensile strength 380-690 MPa, yield strength 170-550 MPa, hardness 60-180 HV, electrical conductivity 7-12% IACS (4-7 MS/m), excellent corrosion resistance especially marine environments. Applications: Marine electrical clips and contacts, outdoor electrical equipment, solar panel grounding clips, corrosive environment applications, architectural electrical hardware. Advantages: Superior atmospheric and marine corrosion resistance versus phosphor bronze, good formability, excellent weldability for clip assemblies. Limitations: Lower electrical conductivity than phosphor bronze (adequate for most DC clip applications).

Aluminum Bronze C63000 (7% Al)

Composition: 93% Cu, 7% Al. Properties: Tensile strength 620-760 MPa, yield strength 275-450 MPa, hardness 150-250 HV, electrical conductivity 13-15% IACS (7.5-8.7 MS/m), high strength and good conductivity combination. Applications: High-strength busbar clips and terminals, railway traction clips, heavy-duty motor brush holders, high-current battery terminals, marine and offshore electrical connections. Advantages: Higher strength than phosphor bronze enabling higher contact pressure, excellent seawater corrosion resistance, non-magnetic, good electrical conductivity. Cost: Premium 30-50% over phosphor bronze.

Material Selection Guide

Manufacturing Processes for Bronze DC Clips

Stamping and Blanking

Process: Flat bronze strip (0.3-5mm thick) stamped in progressive dies, blanking, piercing, forming, bending operations in sequence, high-speed stamping 50-500 strokes per minute. Equipment: Mechanical or hydraulic presses 10-500 tons capacity, progressive dies with 5-20 stations, feeding equipment (coil stock or pre-cut blanks). Advantages: High-volume production economical >10,000 pieces, excellent dimensional consistency ±0.05mm, complex shapes in single operation, minimal material waste with optimized nesting. Applications: Flat spring contacts, battery clips, fuse clips, terminal clips, connector springs, simple busbar clips. Materials: Phosphor bronze, beryllium bronze, tin bronze in strip form, various tempers (H04, H06, H08, H10) for different spring requirements.

Progressive Die Stamping

Process: Multi-station progressive die performing multiple operations as strip advances, sequential operations: blanking, piercing, forming, bending, coining, 5-30 stations typical for complex clips. Advantages: Complex geometries achievable in single press operation, high production rates 100-500 parts per minute, excellent repeatability, lower labor cost for high volumes. Applications: Complex connector springs with multiple bends and forms, automotive battery clips, motor brush holders, intricate busbar clips, assembly components. Tooling: High tooling cost $10,000-$100,000 for complex dies, economical for volumes >50,000-100,000 pieces, tool life 500,000-5,000,000 parts depending on complexity.

Wire Forming and Spring Winding

Process: Bronze wire formed into spring clips using CNC wire forming machines, compression springs, torsion springs, extension springs, complex 3D geometries. Equipment: CNC wire forming machines with 4-12 axes, spring coiling machines, diameter range 0.3mm to 10mm wire. Advantages: Complex 3D geometries difficult to stamp, suitable for low to medium volumes 100-50,000 pieces, lower tooling cost than stamping, rapid prototyping capability. Applications: Compression spring clips, torsion spring contacts, complex battery clips, custom electrical clips, prototype development. Materials: Phosphor bronze wire, beryllium bronze wire, silicon bronze wire, various tempers and finishes.

CNC Machining and Milling

Process: CNC machining of bronze bar stock for heavy-duty clips, busbar clips from thick material 3-10mm, complex geometries requiring machining. Advantages: Low-volume production economical <1,000 pieces, complex 3D geometries, large/heavy clips not suitable for stamping, rapid prototyping 1-2 weeks. Applications: Heavy-duty busbar clips, large battery terminals, custom industrial clips, prototype development, specialty clips. Materials: Bronze bar stock, machined then heat treated if required, surface finishing operations.

Heat Treatment and Stress Relief

Stress Relief: Phosphor bronze clips stress relieved at 150-200°C for 15-60 minutes after forming, removes residual stresses from stamping/forming, stabilizes spring properties preventing relaxation in service, critical for precision springs and contacts. Solution Annealing: Beryllium bronze solution annealed at 780-800°C then water quenched before forming, soft condition allowing complex forming operations. Age Hardening: Beryllium bronze aged at 315°C for 2-3 hours after forming, achieves peak strength and hardness, transforms to high-strength condition, critical for high-performance applications. Atmosphere Control: Protective atmosphere (nitrogen, endothermic gas) or vacuum furnace preventing oxidation and maintaining surface finish.

Surface Finishing and Plating

Tin Plating: 3-10 micron tin plating for corrosion protection and low contact resistance, matte tin or bright tin finish, solder compatible, economical for general applications, contact resistance <5 milliohms. Silver Plating: 1-5 micron silver plating for lowest contact resistance <2 milliohms, excellent for high-current applications, tarnishes over time (requires periodic cleaning or protective coating), premium cost +50-100% versus tin plating. Nickel Plating: 2-8 micron nickel undercoat for corrosion protection, barrier preventing copper migration, typically used under gold plating, hardness improving wear resistance. Gold Plating: Flash gold 0.1-0.5µm for low-level signal contacts <1A, hard gold 1-2µm for wear resistance 10,000+ insertions, prevents oxidation and tarnishing, lowest contact resistance <20 milliohms for signal contacts, premium cost 10-50× tin plating.

Electrical and Mechanical Properties

Electrical Conductivity and Contact Resistance

Conductivity by Alloy: Phosphor bronze C51000: 15% IACS (8.7 MS/m), beryllium bronze C17200: 22-28% IACS (12-16 MS/m), tin bronze C52100: 11% IACS (6.4 MS/m), silicon bronze C65500: 7-12% IACS (4-7 MS/m), aluminum bronze C63000: 13-15% IACS (7.5-8.7 MS/m). Reference: Pure copper 100% IACS (58 MS/m), aluminum 61% IACS.

Contact Resistance Factors: Surface finish (plating reduces resistance significantly), contact force (higher force reduces resistance), contact area (larger area reduces resistance), surface contamination (oxidation, dirt increases resistance), contact pressure (20-50 kPa typical for reliable contact). Typical Contact Resistance: Tin-plated bronze: <5 milliohms, silver-plated bronze: <2 milliohms, gold-plated bronze: <20 milliohms (signal contacts <1A), bare bronze (clean): 10-30 milliohms.

Current Carrying Capacity: Small clips 0.5-1mm² contact area: 1-10A, medium clips 2-10mm² contact area: 10-50A, large clips 10-50mm² contact area: 50-200A, heavy-duty clips >50mm² contact area: 200-500A. Thermal Considerations: I²R heating (P = I²R where R = contact resistance), temperature rise limiting current capacity, forced air cooling increasing capacity 50-100%, thermal conductivity bronze 25-50 W/m·K.

Spring Properties and Contact Force

Spring Force Requirements: Battery clips: 5-50N maintaining secure connection, fuse clips: 2-10N holding fuse while allowing easy replacement, connector springs: 0.5-5N balancing contact reliability and insertion force, busbar clips: 20-200N maintaining vibration-resistant contact, motor brush springs: 2-20N consistent brush pressure as wear occurs.

Fatigue Life: Phosphor bronze: 100,000-1,000,000 cycles typical spring deflection, beryllium bronze: 1,000,000-10,000,000+ cycles for high-performance applications, proper design keeping stress <50% yield strength, surface finish influencing fatigue life (polished better than as-stamped).

Stress Relaxation: Loss of spring force over time at elevated temperature, stress relief heat treatment minimizing relaxation, beryllium bronze superior relaxation resistance versus phosphor bronze, critical for motor brush springs and long-life connectors, typical specification <5% relaxation over 1000 hours at operating temperature.

Spring Design: Cantilever springs most common for clip applications, beam theory calculating deflection (δ = FL³/3EI), stress calculations ensuring stress <yield strength with safety factor, edge radius minimizing stress concentration, grain direction parallel to stress direction optimizing strength.

Applications by Industry

Automotive and Transportation

Battery Connections: Automotive battery terminal clamps (positive and negative), jumper cable clips 200-500A rating, battery charger clips, electric vehicle battery management system clips, hybrid vehicle auxiliary battery connections. Starter Motors: Brush holder clips maintaining carbon brush contact pressure, pigtail connection clips, spring constant maintaining pressure as brushes wear 0-20mm, temperature resistance to 150°C. Alternators and Generators: Brush holder assemblies, slip ring brush contacts, regulator connection clips, grounding clips ensuring proper alternator operation. Fuse and Relay Clips: Automotive fuse box clips (mini, standard, maxi blade fuses), relay socket clips, fusible link holders, circuit breaker contacts.

Renewable Energy and Solar

Solar Panel Grounding: Module frame grounding clips per NEC Article 690, bonding clips connecting adjacent frames, module-to-rail bonding, grounding wire attachment clips, corrosion-resistant for 25+ year outdoor life. Inverter Connections: DC input terminal clips, busbar clips for inverter DC bus, fuse holder clips for DC protection, grounding and bonding clips. Battery Storage Systems: Terminal clips for lithium-ion battery modules, busbar clips for battery pack connections, battery management system (BMS) sensor clips, high-current terminal blocks 100-500A. Wind Turbines: Generator brush holder clips, nacelle electrical system grounding, tower grounding connections, control system DC power clips.

Telecommunications and Data Centers

DC Power Systems: -48V DC telecom power distribution busbar clips, rectifier output terminal clips, battery backup system connections, power distribution fuse clips. Battery Backup (UPS): VRLA battery terminal clips, battery string interconnections, busbar distribution clips, monitoring system sensor clips. Grounding and Bonding: Telecommunications Bonding Backbone (TBB) clips, equipment grounding clips, cable tray bonding, lightning protection grounding per ANSI/TIA-607. Equipment Connections: Rack and cabinet grounding clips, DC power connector clips, equipment chassis bonding, EMI/RFI shielding clips.

Industrial Equipment and Machinery

Motor and Drive Systems: DC motor brush holder clips, servo motor brush assemblies, variable frequency drive DC bus clips, traction motor brushes (forklifts, material handling). Control Panels: Busbar distribution clips, DIN rail mounting clips with electrical contact, terminal block jumper clips, fuse holder clips, grounding bar clips. Battery-Powered Equipment: Forklift battery terminal clips, golf cart battery connections, aerial lift platform batteries, floor scrubber battery systems, mining equipment batteries. Welding Equipment: Welding machine electrode holder clips, ground clamp clips, cable connector clips, high-current applications 200-600A.

Marine and Defense

Naval Vessels: Submarine DC electrical system clips (corrosion-resistant bronze), surface ship battery systems, emergency DC lighting circuits, damage control equipment, aluminum bronze or silicon bronze for seawater resistance. Military Electronics: Military vehicle battery clips MIL-B-3928 specification, portable equipment battery contacts, communications equipment DC power, field equipment quick-disconnect clips. Aircraft and Aerospace: Battery clips for aircraft auxiliary power, avionics DC power connections, beryllium bronze for vibration and temperature resistance, weight-critical applications.

Railway and Transit

DC Traction Systems: Third rail pickup shoe contacts (600-750V DC), overhead catenary pantograph clips, traction motor brush holders, power collection system grounding. Signaling and Control: Trackside signal power clips, block signal battery backup, level crossing control DC power, interlocking system connections, wayside equipment grounding. Rolling Stock: Train battery clips for auxiliary power, emergency lighting battery connections, HVAC system DC power, door control system batteries, monitoring system power.

Consumer Electronics

Battery Contacts: AA, AAA, C, D battery clips in devices, 9V battery snap connectors, coin cell battery holders (CR2032, CR2025), rechargeable battery pack contacts. Charging Systems: Charging dock pogo pin contacts, magnetic charging connector clips, wireless charger coil clips, USB connector spring contacts. Wearables and Portables: Smart watch charging clips, fitness tracker charging contacts, hearing aid battery clips, medical device battery connections, gold-plated for low signal current.

Quality Control and Testing

Electrical Testing

Contact Resistance Measurement: Four-wire Kelvin method measuring milliohm resistance, test current 1-100A depending on clip rating, acceptance criteria typically <5 milliohms for power contacts, <50 milliohms for signal contacts, testing 100% of critical clips or statistical sampling.

Continuity Testing: Verify electrical path through clip, detect open circuits, high-resistance joints, automated testing in production, typically <1 ohm for complete clip assembly.

Insulation Resistance: For clips with insulated handles or housings, megohm meter testing at 500-1000V DC, minimum 10 megohms typically, ensuring electrical isolation where required.

Current Carrying Capacity: Temperature rise testing at rated current, thermocouples monitoring contact temperature, acceptance criteria typically <30°C rise at rated current, verification of current rating specifications.

Mechanical Testing

Spring Force Measurement: Load cell measuring clip clamping force, deflection versus force curves, verify spring rate and working force, testing statistical samples verifying consistency, typical tolerance ±20% of nominal force.

Insertion/Extraction Force: Measure force required to insert/remove clip, connector insertion force gauge, important for user ergonomics, typical specification 2-50N depending on application, lower force preferred for consumer applications.

Fatigue Testing: Cyclic loading to specified deflection 10,000-1,000,000 cycles, verify spring maintains force within tolerance, beryllium bronze tested to 1,000,000+ cycles, acceptance criteria <10% force loss after cycling.

Dimensional Inspection: Calipers and micrometers verifying critical dimensions ±0.05-0.2mm, optical comparators for complex geometries, CMM inspection for precision clips ±0.02mm, statistical process control monitoring production.

Environmental and Durability Testing

Salt Spray Testing: ASTM B117 neutral salt spray test, 96-1000 hours exposure depending on application, evaluates corrosion resistance of base material and plating, marine and outdoor clips tested 500-1000 hours.

Temperature Cycling: -40°C to +125°C cycling per IEC 60068-2-14, typical 10-100 cycles, evaluates thermal expansion compatibility, solder joint integrity, spring property stability at temperature extremes.

Vibration Testing: MIL-STD-810 or IEC 60068-2-6 vibration testing, automotive components tested to 10-55 Hz sinusoidal or random vibration, ensures clips maintain contact under vibration, important for transportation applications.

Corrosion Testing: Mixed flowing gas (MFG) testing per ASTM B845, simulates industrial atmosphere corrosion, sulfur dioxide and other corrosive gases, evaluates contact surface stability, important for long-term reliability.

Compliance Testing

RoHS Compliance: XRF analysis verifying lead, mercury, cadmium, hexavalent chromium below limits, certificate of compliance for European market, lead-free beryllium bronze acceptable (beryllium not RoHS restricted).

REACH Compliance: Substances of Very High Concern (SVHC) declaration, beryllium bronze >0.1% Be requires REACH registration and communication, documentation for European customers.

UL Recognition: UL 486E wire connectors and soldering lugs, UL 1059 terminal blocks, UL file number for component recognition, periodic UL follow-up inspections.

Military Specifications: MIL-B-3928 bonding and grounding jumpers, QPL (Qualified Products List) listing for military applications, source inspection and testing requirements.

Why Choose Our Bronze DC Clip Manufacturing

Three Decades of Precision Clip Manufacturing

Established 1990: 30+ years producing bronze electrical clips, spring contacts, battery clips for automotive, renewable energy, telecom, industrial customers across 40+ countries. Production Volume: 50+ million clips produced annually, sizes 5-200mm, thickness 0.3-5mm, current ratings 1-500A. Quality Performance: 99% on-time delivery, <0.2% defect rate, zero field failures from spring fatigue in documented installations. Certifications: ISO 9001:2015 certified, ISO 14001 environmental management, RoHS and REACH compliant, UL recognized components.

Complete Bronze Clip Capabilities

All Clip Types: Battery terminal clips (automotive, industrial, portable), busbar clips and power distribution, motor brush clips and holders, grounding and bonding clips, fuse clips and holders, connector contact springs, solar panel grounding clips, railway traction clips, custom electrical clips. All Bronze Alloys: Phosphor bronze C51000 (standard), beryllium bronze C17200 (high-performance), tin bronze C52100 (wear-resistant), silicon bronze (marine/outdoor), aluminum bronze (high-strength).

Advanced Manufacturing Technology

High-Speed Stamping: Progressive die stamping lines 100-500 strokes/minute, 10-500 ton presses, complex 10-30 station dies, annual capacity 50-200 million clips. CNC Wire Forming: 4-12 axis CNC wire formers for complex spring clips, wire diameter 0.3-10mm, rapid prototyping capability, low-volume production economical. Heat Treatment: Controlled atmosphere stress relief and age hardening furnaces, precise temperature control ±3°C, maximizing spring properties and dimensional stability. Plating Lines: Rack and barrel plating tanks, tin, nickel, silver, gold plating capabilities, thickness control 1-10 microns ±0.5µm, RoHS compliant processes.

Engineering and Design Support

Custom Design: Application engineering support for optimal clip design, finite element analysis (FEA) for spring force and stress calculations, electrical simulation for contact resistance and current capacity, prototype development 2-4 weeks. Material Selection: Recommendation based on electrical requirements (conductivity, current), mechanical requirements (spring force, fatigue life), environmental factors (corrosion, temperature), cost optimization. Testing Validation: Prototype testing for spring force, contact resistance, current capacity, environmental testing (salt spray, temperature cycling), providing test reports documenting performance.

Quality Assurance

100% Electrical Testing: Contact resistance testing on critical clips, continuity testing automated inline, current capacity verification on sample clips, compliance with electrical specifications. Mechanical Testing: Spring force measurement statistical sampling, insertion/extraction force testing, dimensional inspection ±0.05mm tolerance, fatigue testing for long-life applications. Environmental Testing: Salt spray testing 96-1000 hours, temperature cycling -40°C to +125°C, vibration testing per automotive standards, corrosion testing for outdoor applications. Certifications: Material certificates with chemical composition, plating thickness certificates, RoHS/REACH compliance declarations, UL recognition for applicable clips.

Competitive Global Pricing

Cost Advantage: 40-50% savings versus European and North American manufacturers, competitive with Asian suppliers offering superior quality control and engineering support, transparent pricing with detailed cost breakdowns. Volume Pricing: 1,000-10,000 pieces: 15-20% discount, 10,000-100,000: 20-30%, 100,000-1,000,000: 30-40%, >1,000,000: 40-50% for high-volume stamped clips, tooling costs amortized over production volumes. Rapid Prototyping: Economical prototyping 10-100 pieces using soft tooling or wire forming, 2-4 weeks from design to samples, design iteration support before production tooling.

Global Service and Logistics

Worldwide Export: North America (35%), Europe (30%), Asia-Pacific (20%), Middle East (10%), other (5%), established customers in automotive, renewable energy, telecom, industrial sectors. Lead Times: Prototypes 2-4 weeks wire formed or soft tooled, production tooling 6-10 weeks for progressive dies, production 4-8 weeks after tool approval, high volumes 8-12 weeks with optimized production scheduling. Documentation: Material certificates ASTM/ISO, test reports (spring force, contact resistance, salt spray), RoHS/REACH compliance, UL recognition files, dimensional inspection reports. Technical Support: Application engineering, design optimization, material selection guidance, testing consultation, field failure analysis.

Frequently Asked Questions

Q1: What is the difference between phosphor bronze and beryllium bronze for DC clips? Phosphor Bronze C51000: Standard material for electrical clips, electrical conductivity 15% IACS (adequate for most applications), tensile strength 380-520 MPa, yield strength 380-690 MPa (depending on temper), good spring properties and fatigue life 100,000-1,000,000 cycles, economical baseline cost, suitable for battery clips, fuse clips, general connectors, busbar clips <100A. Beryllium Bronze C17200: High-performance material, electrical conductivity 22-28% IACS (50% better than phosphor bronze), tensile strength 1250-1450 MPa (2.5× stronger), yield strength 1100-1250 MPa, exceptional fatigue life 1,000,000-10,000,000+ cycles, age hardening required (315°C for 2-3 hours), premium cost 3-5× phosphor bronze. Selection: Phosphor bronze for most applications (cost-effective, adequate performance), beryllium bronze for high-cycle connectors >100,000 insertions, high-current busbars >100A, critical aerospace/military applications, space-constrained designs requiring maximum spring force.

Q2: What plating should I specify for my bronze DC clips? Tin Plating (3-10µm): Most economical option, good corrosion protection, low contact resistance <5 milliohms, solder compatible, suitable for power contacts 1-500A, applications: battery clips, busbar clips, motor brushes, fuse holders, cost baseline. Silver Plating (1-5µm): Lowest contact resistance <2 milliohms, excellent for high-current applications >100A, tarnishes over time (requires periodic cleaning or protective topcoat), premium cost +50-100% versus tin, applications: busbar clips, high-current terminals, railway traction contacts. Nickel Plating (2-8µm): Excellent corrosion protection, hard wearing surface, typically used as undercoat for gold, barrier preventing copper migration, applications: outdoor/marine clips (with topcoat), under gold plating for connectors. Gold Plating (0.1-2µm): Lowest contact resistance for signal contacts <20 milliohms, prevents oxidation/tarnishing, flash gold 0.1-0.5µm for low-level signals <1A, hard gold 1-2µm for wear resistance >10,000 insertions, premium cost 10-50× tin, applications: PCB connectors, battery contacts in consumer electronics, charging dock contacts. Recommendation: Tin plating for general DC power applications (economical, reliable), silver for high-current >100A, gold for signal contacts <1A or high-insertion-cycle connectors.

Q3: How do I calculate the required spring force for my clip application? Contact Resistance Requirement: Higher contact force reduces contact resistance, typical relationship: R ∝ 1/√F (resistance inversely proportional to square root of force), typical minimum force 0.5-2N for low-current signal contacts, 5-20N for power contacts 1-50A, 20-200N for high-current contacts 50-500A. Current Capacity: Force must maintain contact area under vibration and thermal expansion, contact pressure 20-50 kPa (2-5 N/mm²) typical for reliable contact, current density ≤10 A/mm² contact area for reasonable temperature rise. Insertion/Extraction Force: User ergonomics limiting maximum force, battery clips typically 10-50N clamping force, connector insertion force 2-10N preferred for consumer applications, industrial applications acceptable to 50N. Vibration Resistance: Higher force maintains contact under vibration, automotive clips designed for 10-55 Hz vibration per ISO 16750, railway and industrial equipment similar requirements. Spring Design: Cantilever spring force F = (3EIδ)/L³ where E=modulus (110 GPa phosphor bronze), I=moment of inertia, δ=deflection, L=beam length, optimize geometry for required force while keeping stress <50% yield strength. Recommendation: Provide application details (current rating, vibration environment, insertion force preference), we calculate optimal spring design and validate with prototypes.

Q4: Are bronze clips suitable for outdoor solar and renewable energy applications? Yes, bronze clips excellent for outdoor and solar applications with proper material and plating selection. Material: Silicon bronze C65500 or tin bronze C52100 recommended for excellent atmospheric corrosion resistance, phosphor bronze acceptable with tin or nickel plating, aluminum bronze for high-strength structural clips. Plating: Tin plating 5-10µm minimum for outdoor exposure, nickel plating 3-8µm for enhanced corrosion protection, stainless steel clips with bronze contact inserts alternative for extreme environments. Corrosion Resistance: Salt spray testing 500-1000 hours per ASTM B117 validating 25+ year outdoor life, UV resistance (bronze not affected by UV unlike polymers), temperature cycling -40°C to +85°C (typical outdoor range) without degradation. Standards Compliance: UL 2703 mounting systems and grounding for PV, NEC Article 690 solar installations, grounding conductor sizing per NEC 250.166. Applications: Solar panel frame grounding and bonding clips, module-to-rail bonding, grounding wire attachment, inverter DC connection clips, battery storage terminals. Design: Maintain contact pressure despite thermal expansion, vibration-resistant (wind loading), stainless steel hardware (screws, bolts) with bronze electrical contact, drainage design preventing water pooling and crevice corrosion.

Q5: What are typical lead times and minimum order quantities for bronze DC clips? Prototypes: 2-4 weeks for wire-formed clips or soft tool stamping, MOQ 10-100 pieces for prototype validation, lower cost than production tooling, design iteration support. Production Tooling: 6-10 weeks for progressive die design and manufacturing (complex 10-30 station dies), tooling cost $10,000-$100,000 depending on complexity, tool life 500,000-5,000,000 parts, MOQ 10,000-50,000 pieces economical for amortizing tool cost. Production Runs: 4-8 weeks for standard production after tool approval, MOQ 5,000-25,000 pieces depending on complexity and size, higher volumes reducing piece price 30-50%. High Volume: 8-12 weeks for initial production >100,000 pieces with optimized manufacturing, volume discounts 30-40%, blanket purchase orders with scheduled releases. Stock Items: Some standard battery clips and terminal clips available from stock 1-2 weeks delivery, MOQ 100-1,000 pieces, common automotive and industrial sizes. Expedited Service: 4-5 weeks possible for urgent requirements using existing tooling or wire forming, premium 20-30% surcharge.
