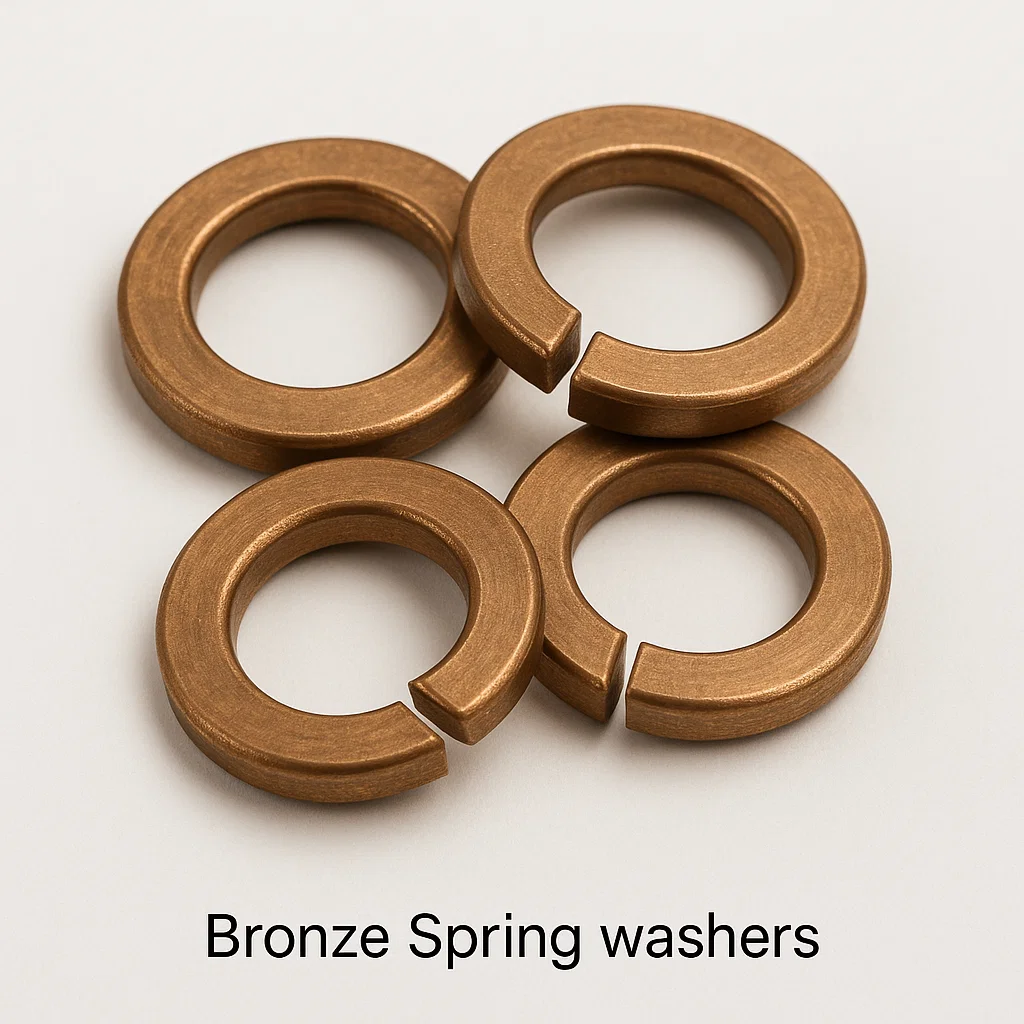

Bronze Spring washers

High-Performance Bronze Spring Washers: Corrosion-Resistant Locking and Spring Solutions

We are one of the leading manufacturers and exporters of precision-engineered Bronze Spring Washers from India. We have been supplying superior quality non-ferrous fasteners and anti-corrosive locking washers to the world market for many decades, establishing a formidable reputation for reliability, technical excellence, and and competitive pricing. Our state-of-the-art manufacturing facility in Jamnagar is equipped with advanced machinery and is supported by a highly skilled engineering team dedicated to producing components that meet the most stringent international standards. Our Bronze Spring Washers are renowned for their exceptional corrosion resistance, excellent electrical conductivity, and self-lubricating properties, making them the preferred choice for a multitude of marine, chemical, and electrical applications. We specialize in providing both standard and customized bronze washer solutions, ensuring a perfect fit for your specific locking, spring tension, and grounding requirements. Our commitment extends beyond manufacturing to encompass robust customized packaging, timely global logistics, and unparalleled customer support, solidifying our position as a trusted partner in the global industrial supply chain.

Comprehensive Overview of Bronze Spring Washers

Bronze Spring Washers are dynamic fastening components designed to provide a continuous spring force in a bolted assembly. Their primary function is to prevent loosening under vibration and thermal cycling by maintaining a critical clamp load, compensating for material relaxation and wear. Unlike static washers, they act as a spring, absorbing shock and mitigating the effects of vibration. The choice of Bronze as the core material is strategic, leveraging its innate properties such as outstanding corrosion resistance, particularly in seawater and many chemical environments, high fatigue strength for long-term reliability under cyclic loads, and non-magnetic and non-sparking characteristics. These washers are indispensable in applications where ferrous metals would fail, such as in marine hardware, subsea equipment, chemical processing plants, and electrical grounding assemblies. By providing a reliable, vibration-proof connection in the most demanding environments, bronze spring washers ensure the integrity and safety of the assembly.

In-Depth Look at Standard Bronze Spring Lock Washers

Our Standard Bronze Spring Lock Washers, often of the single-coil helical type, are the most common variant. They feature a cut and helically wound design that applies a spring force between the nut/bolt head and the workpiece. Manufactured from high-quality Phosphor Bronze (ASTM B139, C51000), these washers offer an excellent combination of spring properties, wear resistance, and corrosion resistance. The manufacturing process involves precision stamping from certified bronze strip, followed by heat treatment (stress relief) to stabilize the material and ensure consistent spring performance. The single-cut ends provide a biting action that helps resist rotation. They are widely used in saltwater cooling systems, pump assemblies, valve stems, and electrical connectors where galvanic corrosion must be avoided.

Technical Specifications: Standard Bronze Spring Lock Washers

Advanced Bronze Disc Spring Washers (Belleville Washers)

For applications requiring high loads in a compact space, our Bronze Disc Spring Washers (Belleville Washers) provide a superior solution. These washers are conically shaped discs that can support high axial loads with small deflections. They can be used singly, in series (for larger deflection), or in parallel (for higher load). Manufactured from high-strength Aluminum Bronze (C63000) or Beryllium Copper (C17200) for the most demanding applications, these washers are capable of performing in high-temperature and high-pressure environments. The manufacturing process involves precision stamping and coining to achieve the exact cone angle and load profile, followed by heat treatment. They are essential in valve actuation systems, thrust bearings, bolt pre-loading applications, and high-pressure fluid power equipment where space is limited and load requirements are high.

Technical Specifications: Bronze Disc Spring Washers

Material Grades and International Standards

Our Bronze Spring Washers are manufactured from a range of internationally recognized bronze alloys to meet diverse application needs.

• Phosphor Bronze (ASTM): C51000 (ASTM B139) – Excellent spring properties, fatigue resistance.

• Aluminum Bronze (ASTM): C63000 (ASTM B150) – High strength, excellent corrosion and wear resistance.

• Silicon Bronze (ASTM): C65500 – Good corrosion resistance and strength.

• Beryllium Copper (ASTM): C17200 (ASTM B196) – Very high strength, excellent conductivity.

• Europe (DIN/EN): CuSn6, CuAl10Fe3

Our products are designed and manufactured in compliance with international standards, including ISO 10683, DIN 128, DIN 2093, and ANSI B18.21.1.

Manufacturing Processes and Quality Assurance

The production of our bronze spring washers is a precision-driven process. It begins with the selection of certified bronze strip or coil, which is then fed into high-speed progressive die stamping presses to blank and form the washer shape. For disc springs, a secondary coining operation is often used to achieve the precise cone angle and load-deflection characteristics. A critical heat treatment process is employed to achieve the desired spring temper, relieving internal stresses and setting the mechanical properties. Each batch undergoes rigorous inspection, including dimensional checks with optical comparators, load-deflection testing to verify spring rate, salt spray testing per ASTM B117 to validate corrosion resistance, and material composition verification via PMI testing. Our quality management system ensures full traceability and consistency.

Plating and Finishing Options

While bronze naturally resists corrosion, specific applications may require enhanced finishes:

• Natural Bronze (Self-Lubricating): The standard finish, leveraging the natural corrosion resistance and lubricity of bronze.

• Passivation: A chemical process that enhances the natural oxide layer on the bronze surface, improving tarnish resistance.

• Electro-Tin Plating: Provides excellent solderability and enhanced protection against specific corrosive agents.

Industries Served and Performance Metrics

Our components are critical in sectors where corrosion and reliability are paramount:

• Marine and Shipbuilding (Deck Hardware, Propulsion Systems)

• Chemical and Process Industries (Pumps, Valves, Reactors)

• Electrical and Electronics (Grounding Connectors, Busbars)

• Oil & Gas (Subsea Equipment, Offshore Platforms)

• Water and Wastewater Treatment

• Aerospace and Defense (Non-Magnetic Applications)

Key Performance Metrics: Our washers are characterized by their spring rate (load-deflection curve), load capacity, fatigue life, corrosion resistance rating, and operating temperature range.

Frequently Asked Questions (FAQ)

1. Why use a bronze spring washer instead of a steel one?
The primary reasons are corrosion resistance and non-magnetic properties. Bronze washers are essential in marine and chemical environments to prevent rust and in electrical or sensitive instrumentation applications to avoid magnetic interference.

2. Are bronze spring washers reusable?
While they can often be reused in non-critical applications, for maximum reliability and consistent clamp load, it is generally recommended to replace them during disassembly, as the spring properties can degrade after multiple compression cycles.

3. Can you manufacture spring washers from Beryllium Copper?
Yes, we work with Beryllium Copper (C17200) for applications requiring the highest strength and fatigue resistance combined with excellent electrical and thermal conductivity, often for aerospace and high-performance electronics.

4. What is the standard turnaround time for a custom washer order?
Our standard lead time for custom projects is typically 4 to 6 weeks, which includes tooling fabrication, sample approval, and production. We offer expedited services for urgent requirements.

5. How do I select between a helical spring lock washer and a Belleville washer?
A helical spring lock washer is for general-purpose vibration resistance. A Belleville disc spring washer is for applications requiring a high axial load in a confined space or where precise pre-loading of a bolt is necessary.

6. Do your washers meet specific international standards?
Yes, we can manufacture washers to conform to DIN, ISO, and ANSI standards, providing assurance of dimensional consistency and performance.

7. Can you provide washers with specific load requirements?
Absolutely. Our custom engineering capabilities allow us to produce washers to your specific load-deflection specifications, selecting the appropriate material and geometry to meet your exact performance criteria.

Why Choose Jamnagar Brass Components for Bronze Spring Washers?

• Three Decades of Non-Ferrous Metal Expertise: Our extensive experience in stamping and forming bronze gives us deep insight into achieving the precise spring properties required for demanding applications.

• Unmatched Customization and Engineering Support: We offer fully customized washer solutions, including non-standard sizes, special alloys, and unique load-deflection profiles, backed by direct engineering support.

• Proven Manufacturing Flexibility: We efficiently handle both high-volume OEM orders and small-batch, specialized projects, adapting our production scheduling to your timeline.

• Superior Quality and Traceability: Our rigorous quality management system and in-house testing capabilities ensure that every batch of washers meets its specified mechanical and corrosion-resistant performance.

• Robust Global Supply Chain: As seasoned exporters from India, we have the logistical expertise to deliver products safely and on time to any global destination.

Packaging and Shipping

We ensure our precision components are protected from damage and corrosion during transit. Standard packaging includes anti-tarnish VCI packaging and bulk boxes. We offer customized packaging solutions, including branded poly bags and reel packaging for automated assembly. We ship via reliable international air and sea freight partners.

Glossary of Terms

• Spring Rate: The force required to deflect a spring washer a given distance, typically expressed in N/mm.

• Load-Deflection Curve: A graph showing the relationship between the load applied to a spring and its resulting deflection.

• Clamp Load: The force exerted by a fastener when tightened, which the spring washer helps to maintain.

• Belleville Washer: A conically-shaped disc spring capable of supporting high loads.

• Stress Relaxation: The loss of clamping force in a bolted joint over time, which spring washers are designed to combat.

---

Secure Your Critical Assemblies Against Vibration and Corrosion!

Ensure the long-term integrity of your marine, chemical, and electrical systems with Jamnagar Bronze Spring Washers. Contact our technical sales team today for a competitive quotation, a detailed product catalog, or to discuss your custom requirements.
