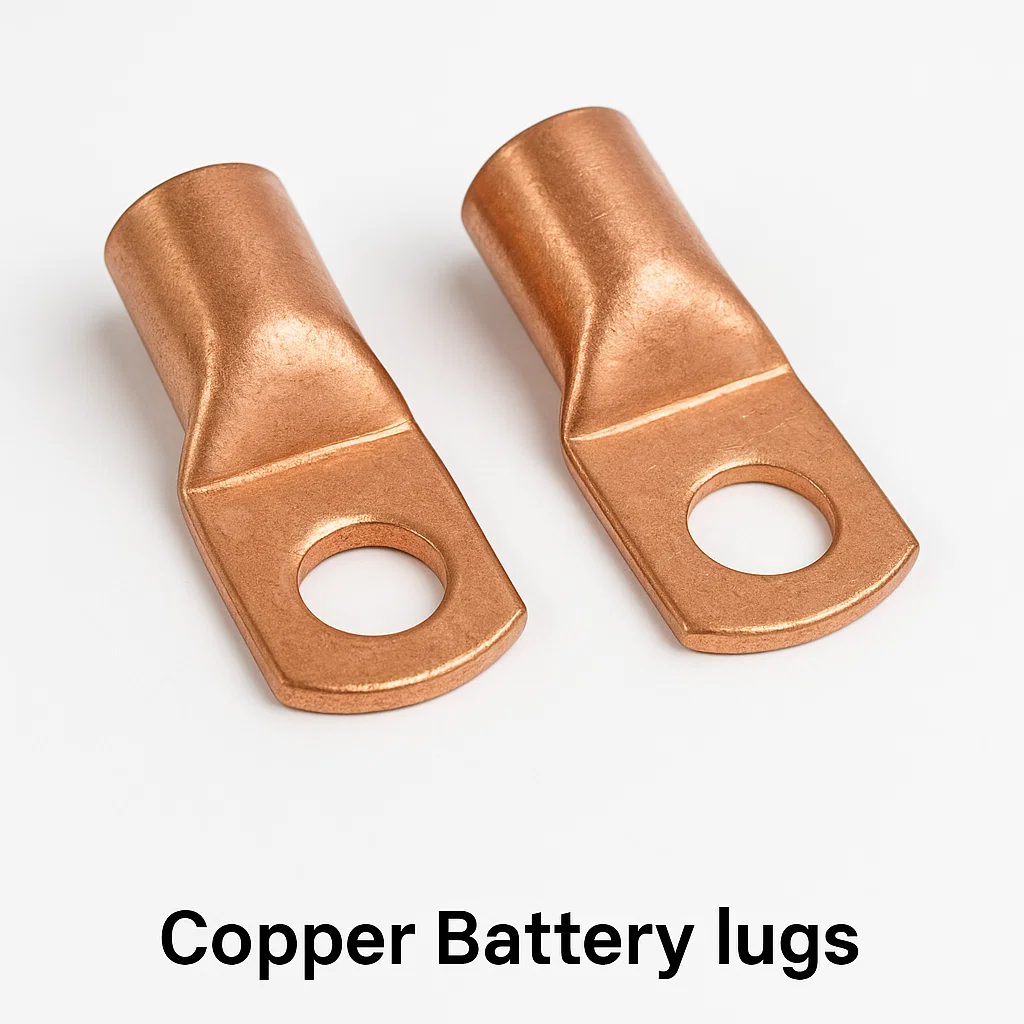

Copper Battery lugs

---

Comprehensive Overview of Copper Battery Lugs: Essential Components for Power Connectivity

We stand as a leading manufacturer and global exporter of high-conductivity Copper Battery Lugs from India, specializing in the production of critical components that form the backbone of electrical power distribution systems. For many decades, we have been the trusted supplier for industries requiring robust, reliable, and efficient electrical connections, leveraging our expertise in metallurgy and precision forging. Our state-of-the-art manufacturing facility is dedicated to producing superior-quality copper battery lugs, terminals, and connectors using advanced processes like hot forging, precision machining, and electroplating. With profound experience in electrical component manufacturing, we serve a vast spectrum of industries including automotive and electric vehicle (EV) manufacturing, renewable energy storage systems, telecommunications infrastructure, marine and automotive electrical systems, UPS (Uninterruptible Power Supply) and inverter assemblies, industrial power distribution panels, and solar power plants. Our technical mastery encompasses various high-performance copper materials, including Electrolytic Tough Pitch Copper C11000 for unparalleled electrical conductivity, Oxygen-Free Copper C10100/C10200 for superior performance in high-temperature and vacuum applications, Tin-Plated Copper for excellent corrosion resistance and solderability, and Lead-Plated Copper for specific automotive battery applications. We manufacture copper battery lugs in an extensive range, from small 6 AWG (16 mm²) lugs for control circuits to massive 500 MCM (250 mm²) and larger lugs for high-current battery banks, all engineered to ensure minimal voltage drop, maximum current flow, and long-term connection integrity.

Our advanced manufacturing capabilities for copper battery lugs integrate a suite of sophisticated processes, including computer-aided design and simulation for optimal current flow and mechanical strength, hot forging and cold forming to create dense, non-porous grain structures for superior conductivity, precision deep drilling and boring for consistent cable barrel dimensions, CNC machining for complex profiles and exact tolerances, high-quality electroplating with pure tin or lead for environmental protection, hydraulic crimping and swaging for prototype and assembly services, and laser or dot-peen marking for permanent rating and identification. Our engineering team possesses deep expertise in electrical connectivity, including current carrying capacity (ampacity) calculations, heat dissipation analysis, corrosion mitigation strategies, crimping force optimization, and adherence to international standards such as UL 486A-B, IEC 61238, SAE J1634, and ASTM B105, ensuring every copper battery lug meets the stringent demands of safety and performance. Our ISO 9001:2015 and IATF 16949 certified quality management systems govern our production, and we maintain complete raw material traceability with mill certificates, detailed process control records, comprehensive dimensional inspection reports, conductivity test results, and plating thickness verification, providing our global clientele with absolute confidence in component quality and reliability.

---

Copper Battery Lugs – The Critical Link in High-Current Electrical Pathways

Copper Battery Lugs, also known as battery terminals or cable lugs, are specialized connectors designed to terminate electrical cables and create a secure, low-resistance connection to battery posts or bus bars. They serve as the crucial interface between the power source (battery) and the distribution network (cables), ensuring that electrical energy is transmitted with maximum efficiency and minimal loss. A poorly designed or manufactured lug can lead to voltage drop, overheating, energy waste, and ultimately, system failure or fire hazards. The fundamental design includes a cable barrel (for crimping or soldering to the cable) and a connection terminal (with a ring, flag, or stud-style geometry for bolting to the battery). The exceptional electrical and thermal conductivity of copper makes it the undisputed material of choice for these critical components, ensuring they can handle high inrush currents and continuous loads without compromising performance.

Extended Applications of Copper Battery Lugs:

• Automotive & Transportation: Standard lead-acid battery connections, heavy-duty truck batteries, and high-voltage battery packs in Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs).

• Renewable Energy Systems: Connections for battery banks in solar energy storage, wind turbine backup systems, and off-grid power installations.

• Telecommunications & Data Centers: Primary and backup battery connections in server farms, cellular tower power cabinets, and UPS systems ensuring uninterrupted operation.

• Marine & RV Applications: Starting battery and deep-cycle battery connections for boats, yachts, and recreational vehicles, where vibration and corrosion are significant concerns.

• Industrial Machinery: Connections for forklift batteries, industrial UPS systems, generator sets, and motor control center (MCC) backup power.

• Power Distribution: Lugs for grounding systems, electrical substation battery backups, and switchgear control circuits.

Our comprehensive copper battery lug manufacturing and service portfolio includes:

• Application-Specific Engineering Consultation: Assistance in selecting the correct lug type, size, and material based on current rating, cable type, environmental conditions, and applicable standards.

• Custom Design & Prototyping: Development of lugs for non-standard battery posts, unique spatial constraints, or specialized high-vibration applications, including custom angles and offsets.

• Full-Range Production: Capability to manufacture all standard types—Ring Tongue, Fork (Spade) Tongue, Pin Tongue, and Stud-Type—in a complete range of AWG and metric cable sizes.

• Value-Added Services: Pre-installation tin-plating, laser etching for part numbers, and pre-filling with antioxidant compound.

• Complete Kitting Solutions: Supplying lugs along with matching crimping dies, heat shrink tubing, and antioxidant gels as a complete connection kit.

---

Copper Material Grades and Battery Lug Performance Specifications

Copper Alloy Specifications for High-Performance Battery Lugs

Comparative Performance Properties of Copper Battery Lug Materials

---

Advanced Manufacturing Processes and Rigorous Quality Control

Our dedicated manufacturing facility for copper battery lugs employs a suite of advanced processes to ensure precision, performance, and reliability:

• Hot Forging & Die Pressing: This is the primary process for high-quality lugs, creating a dense, forged grain structure that eliminates porosity and ensures superior electrical and mechanical properties compared to cast lugs.

• Precision CNC Machining: For drilling the cable barrel to exact diameters, boring the terminal ring, and creating complex features like set-screws or specific angles with tight tolerances.

• High-Speed Stamping: For producing standard lugs in very high volumes, ensuring consistency and cost-effectiveness.

• Electroplating: Automated plating lines ensure a consistent, adherent, and pure layer of tin, lead, or silver, providing durable corrosion protection.

• Quality Control & Testing: Every step is monitored, from raw material to finished product.

Detailed Manufacturing Process Flow:
Raw Material Procurement (Copper Billets/Rod) → Incoming Material Inspection & Certification → Hot Forging in Precision Dies → Flash Trimming & Deburring → Precision Drilling & Boring of Cable Barrel → Electroplating (Tin/Lead/Silver) → Rinsing & Drying → 100% Dimensional & Visual Inspection → Electrical Conductivity Spot Testing → Laser Marking with Size & Rating → Packaging & Shipment.

Comprehensive Quality Control and Testing Protocol:

• Dimensional Metrology: Using go/no-go gauges for ring inner diameter, vernier calipers, and micrometers to verify all critical dimensions, including cable barrel inner diameter, wall thickness, and bolt hole size.

• Material and Plating Verification: Spectroscopic analysis to confirm copper grade and X-ray fluorescence (XRF) to verify plating thickness and composition.

• Mechanical Strength Testing: Destructive testing on sample batches to validate the tensile strength of the crimped connection, ensuring it meets or exceeds the strength of the cable itself.

• Electrical Performance Testing: Micro-ohm meter testing to ensure the resistance of the lug itself is negligible, typically in the micro-ohm range.

• Salt Spray Testing (ASTM B117): Regular testing of plated samples to validate corrosion resistance, ensuring lugs can withstand harsh environments.

---

Frequently Asked Questions (FAQ)

Q1: What is the difference between a cast lug and a forged lug?
Forged lugs are formed under high pressure, creating a dense, non-porous grain structure that offers superior mechanical strength and electrical conductivity. Cast lugs are made by pouring molten metal into a mold, which can introduce porosity and impurities, making them weaker and less reliable for high-current applications. We specialize in hot-forged lugs for maximum reliability.

Q2: Why is plating necessary on copper battery lugs?
While copper has excellent conductivity, it oxidizes when exposed to air, forming a non-conductive layer of copper oxide. Plating (with Tin, Lead, or Silver) prevents this oxidation, protects against corrosion from battery acid or salt spray, and in the case of tin, greatly improves solderability.

Q3: How do I select the correct size battery lug for my cable?
The lug must match both the cable gauge (AWG or mm²) and the battery post or terminal stud size. Using an undersized lug for a cable will constrict current flow and cause overheating. We provide detailed sizing charts and technical support to ensure correct selection.

Q4: What is the best method for attaching a lug to a cable: crimping or soldering?
For high-current and high-vibration applications (automotive, marine, industrial), crimping is universally recommended. A proper crimp creates a cold-weld that is gas-tight, highly conductive, and mechanically robust. Soldering can be acceptable for low-vibration, low-current applications but is prone to failure under vibration and can create a brittle point in the cable.

Q5: Can you provide lugs with pre-installed heat shrink?
Yes, we offer value-added services including the application of adhesive-lined, dual-wall heat shrink tubing. This provides a professional finish, strain relief, and an additional environmental seal against moisture and corrosion.

---

Why Partner With Us for Your Copper Battery Lug Needs?

• Decades of Electrical Component Expertise: With over 30 years of experience, we possess an unparalleled understanding of the metallurgical and electrical requirements for high-performance power connections.

• Superior Forging Technology: Our focus on hot-forged manufacturing ensures we deliver the most reliable and efficient lugs on the market, far surpassing the quality of cast alternatives.

• Full Compliance & Certification: Our lugs are manufactured to meet UL, IEC, SAE, and ASTM standards, and our IATF 16949 certification makes us a qualified supplier for the automotive and EV industries.

• Complete In-House Capability: From forging and machining to plating and marking, we control the entire process, guaranteeing quality, shortening lead times, and reducing cost.

• Technical & Application Support: Our engineers provide more than just products; we offer solutions for crimping tool selection, installation best practices, and corrosion prevention.

---

Glossary of Technical Terms

• Battery Lug/Terminal: A connector used to attach a cable to a battery post.

• AWG (American Wire Gauge): A standardized wire gauge system used in North America.

• mm² (Square Millimeter): The metric standard for defining cable cross-sectional area.

• Crimping: The process of deforming a lug to compress it onto a cable, creating a secure connection.

• Ampacity: The maximum current a conductor can carry continuously without exceeding its temperature rating.

• Voltage Drop: The loss of voltage in an electrical circuit due to the resistance of the conductors and connections.

• Ring Tongue: A lug with a fully enclosed circle for bolting.

• Fork (Spade) Tongue: A lug with a U-shaped opening, allowing for installation without removing the bolt.

---
