Comprehensive Overview of Copper Gaskets and Copper Sealing Washers
We are one of the leading manufacturers and exporters of Copper Gaskets and Copper Sealing Gaskets from India. We have been supplying precision copper gaskets, copper crush washers, copper sealing rings, copper O-rings, and copper flat gaskets to the world market for many decades. Our state-of-the-art manufacturing facility specializes in producing high-quality copper gaskets using advanced precision blanking technology, waterjet cutting for complex profiles, laser cutting for intricate geometries, CNC machining for thick gaskets, progressive die stamping for high-volume production, and annealing heat treatment for optimal sealing properties. With over three decades of global experience in copper gasket manufacturing, we serve diverse industries including automotive copper gaskets for engine and exhaust systems, oil and gas copper sealing gaskets for flanges and wellheads, vacuum system copper gaskets for ultra-high vacuum applications, hydraulic copper sealing washers for fluid systems, aerospace copper gaskets for fuel and hydraulic lines, marine copper gaskets for engine and propulsion systems, chemical processing copper gaskets for corrosive environments, power generation copper gaskets for turbines and heat exchangers, and industrial copper gaskets for pipes, valves, and equipment connections. Our expertise encompasses working with various copper grades including pure Copper C11000 gaskets offering excellent thermal conductivity and malleability, Copper C10200 oxygen-free gaskets for vacuum applications requiring outgassing-free sealing, annealed soft copper gaskets conforming to irregular surfaces, half-hard copper gaskets for higher pressure applications, and copper-coated soft steel gaskets combining copper sealing with steel strength. We manufacture copper gaskets ranging from small 6mm ID crush washers for automotive applications to large 2000mm diameter flange gaskets for industrial equipment, all maintaining precise dimensional accuracy, superior surface finish, excellent sealing performance, and reliable leak-free operation in demanding high-temperature and high-pressure conditions.
Our advanced manufacturing capabilities in producing precision copper sealing gaskets extend across multiple manufacturing processes including precision blanking using progressive dies creating accurate inner and outer diameters with minimal burr for clean sealing surfaces, waterjet cutting for large or complex gasket profiles without heat-affected zones, laser cutting providing intricate geometries and tight tolerances for custom gaskets, CNC turning and milling for thick copper gaskets requiring machined sealing surfaces, stamping operations for flat gaskets, washers, and simple profiles, annealing heat treatment in controlled atmosphere furnaces softening copper to dead-soft condition for maximum conformability and sealing performance, surface finishing including grinding or lapping for critical flatness specifications, coating applications including nickel or tin plating for enhanced corrosion resistance, and custom forming operations creating profiled gaskets, corrugated gaskets, or metal jacketed gaskets. Our engineering team possesses deep technical knowledge of copper gasket sealing principles, material selection based on temperature, pressure, and media compatibility, gasket design parameters including compression set, creep relaxation, and stress distribution, surface finish requirements for optimal sealing, flange design considerations, bolt torque specifications, and international gasket standards ensuring every copper gasket meets or exceeds customer specifications and application requirements. Our quality management system complies with ISO 9001:2015 standards, ASME B16.20 metallic gasket specifications, API 6A wellhead equipment standards for oil and gas applications, aerospace specifications including AMS and military standards, automotive quality requirements, vacuum technology standards, and customer-specific gasket requirements. We maintain complete traceability of copper raw material certificates, detailed manufacturing process documentation, dimensional inspection records using precision measuring equipment, surface finish verification reports, flatness measurement data, and material test reports for every batch of copper gaskets produced. Our customers across North America, European Union countries, United Kingdom, Australia, Middle East regions, and Southeast Asian markets trust our copper gasket expertise for their critical sealing and leak prevention applications in demanding operating conditions.

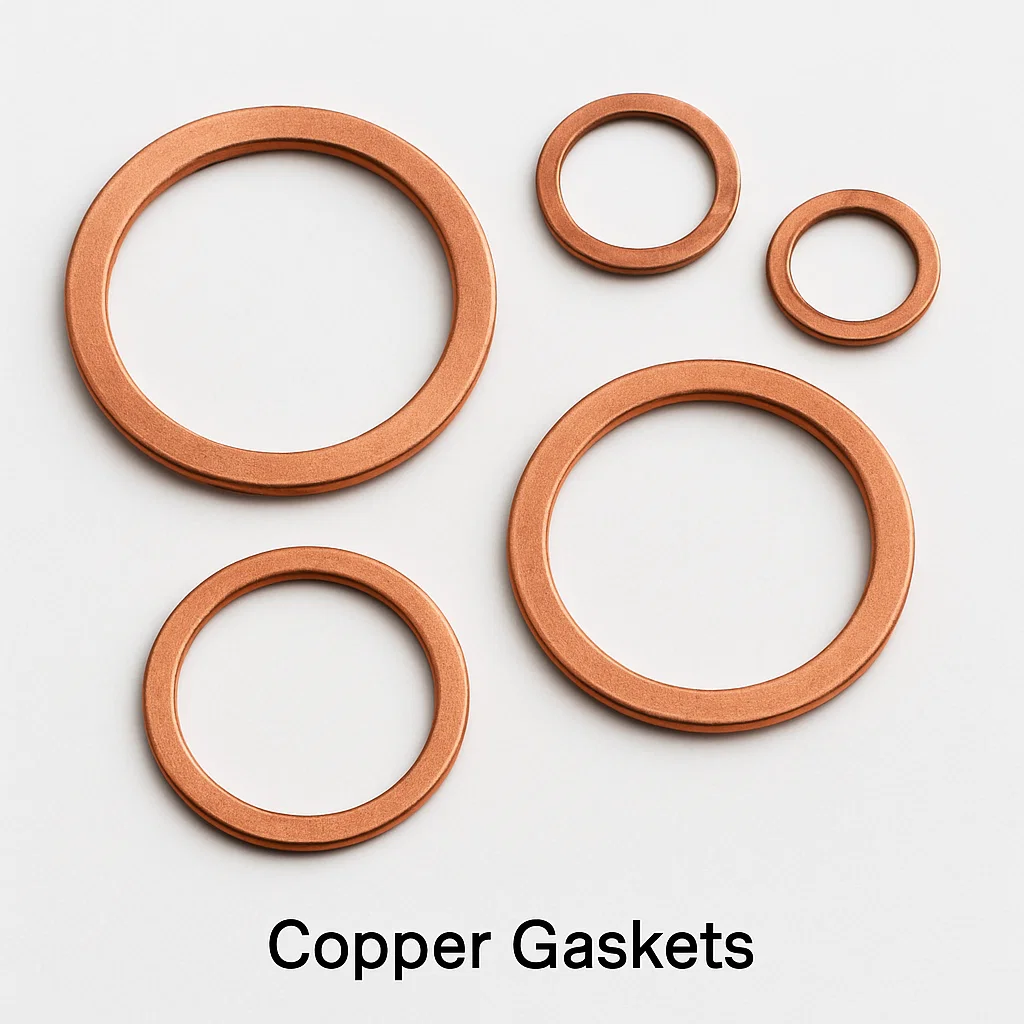

Copper Gaskets – High-Temperature High-Pressure Sealing Solutions
Copper Gaskets represent specialized sealing components manufactured from copper sheet, plate, or wire designed to create leak-tight seals between mating surfaces in mechanical assemblies, providing reliable sealing through plastic deformation of soft copper conforming to surface irregularities and maintaining seal integrity under high temperatures, pressures, and thermal cycling conditions. These copper gaskets are produced in various configurations including flat ring gaskets with circular inner and outer diameters for pipe flanges and equipment connections, crush washers (sealing washers) designed for single-use sealing through controlled compression, solid metal O-rings with circular cross-section for groove sealing applications, profiled gaskets with grooves or corrugations enhancing elasticity and sealing capability, spiral wound gaskets combining copper with filler materials for high-pressure applications, and custom-shaped gaskets matching specific flange or equipment geometries. Copper gaskets find extensive applications in automotive industry including exhaust manifold gaskets sealing exhaust components at temperatures exceeding 800°C, oil drain plug crush washers providing reusable sealing for oil pans and transmission pans, fuel system copper sealing washers for injection systems and fuel rails, brake line copper washers ensuring hydraulic fluid sealing, and turbocharger gaskets resisting extreme temperatures and pressures, oil and gas industry including wellhead flange gaskets for high-pressure connections, valve bonnet gaskets sealing critical valves, pipeline flange gaskets connecting pipe sections, heat exchanger gaskets for tube-to-tubesheet joints, and compressor seal gaskets, vacuum technology applications including conflat (CF) copper gaskets for ultra-high vacuum systems requiring leak rates below 10^-11 mbar·L/s, vacuum chamber gaskets, vacuum pump flange gaskets, and scientific instrumentation sealing requiring outgassing-free materials, aerospace applications including aircraft fuel line copper washers, hydraulic system sealing washers, engine component gaskets, and auxiliary power unit (APU) gaskets requiring lightweight reliable sealing, marine propulsion systems including engine head gaskets, exhaust system gaskets, cooling system copper gaskets, and propulsion shaft sealing, chemical processing equipment including reactor flange gaskets resistant to corrosive chemicals, distillation column gaskets, pump seal gaskets, and piping system flange gaskets, power generation including steam turbine gaskets, heat exchanger tube gaskets, condenser gaskets, and boiler component sealing, hydraulic systems including hydraulic cylinder gaskets, valve body gaskets, manifold block gaskets, and high-pressure hydraulic fittings, and industrial equipment including compressor gaskets, pipe flange sealing, valve bonnet gaskets, and process equipment connections.
Our copper gasket manufacturing services include engineering consultation for gasket design optimization and seal performance analysis, material selection guidance based on operating temperature range from cryogenic to 400°C continuous, pressure requirements from vacuum to 400 bar, chemical compatibility with process media, and thermal cycling conditions, custom gasket design for non-standard dimensions or unique sealing geometries, finite element analysis simulating gasket compression and stress distribution, prototype development with leak testing validation, production manufacturing using appropriate cutting or forming methods, various gasket types including flat ring gaskets, crush washers, solid metal O-rings, profiled gaskets, spiral wound gaskets, and metal-jacketed gaskets, dimensional capabilities from small 6mm ID washers to large 2000mm diameter flange gaskets, material thickness from 0.5mm to 10mm depending on sealing requirements, tolerance specifications from general ±0.2mm to precision ±0.05mm for critical applications, surface finish options from standard 3.2 Ra to precision lapped 0.8 Ra for vacuum applications, annealing treatments providing dead-soft to half-hard temper conditions, surface treatments including tin plating, nickel plating, or silver plating for enhanced properties, and complete documentation with material certificates, dimensional inspection reports, and surface finish verification. We accommodate copper gasket sizes ranging from miniature 6mm inner diameter washers weighing less than 1 gram to large 2000mm flange gaskets weighing several kilograms, standard dimensions conforming to ANSI, DIN, JIS, or BS flange standards, custom dimensions per engineering drawings, material thicknesses from thin 0.5mm for low-pressure applications to thick 10mm for high-pressure flanges, and hole patterns including bolt holes, vent holes, or custom perforations. Material specifications conform to ASTM B152 for copper sheet strip plate and rolled bar, ASTM B187 for copper rod bar and shapes, ASTM B170 for oxygen-free copper, and corresponding international standards including EN 1652 for European copper specifications and JIS H3100 for Japanese copper standards. The lead time for copper gasket production typically ranges from four to six weeks depending on gasket size, quantity, complexity, surface treatment requirements, and testing specifications, with shorter lead times of 1-2 weeks for standard sizes from existing inventory.

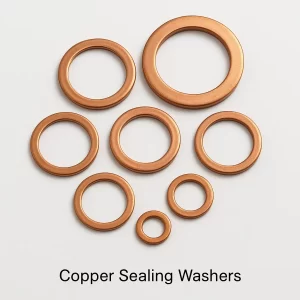

Copper Crush Washers and Sealing Washers – Single-Use Compression Seals
Copper Crush Washers (also called copper sealing washers) represent specialized single-use gaskets designed with tapered or angled sealing surfaces that plastically deform during bolt tightening, creating leak-tight seal through controlled compression and cold flow of soft copper into surface irregularities. These copper crush washers are manufactured with specific geometric features including tapered inner diameter edge creating concentrated sealing pressure, precise thickness controlling compression distance, annealed soft copper ensuring complete conformability, and outer diameter sized for washer location and support. Copper crush washers find widespread use in automotive drain plugs including engine oil drain plugs preventing oil leaks through threaded connections, transmission fluid drain plugs, differential drain plugs, and coolant drain plugs, automotive fuel systems including fuel injector sealing washers, fuel rail connection washers, fuel pump mounting washers, and fuel line banjo bolt washers, hydraulic systems including hydraulic hose banjo fittings, brake line copper washers, clutch line sealing washers, and power steering line connections, motorcycle applications including engine case drain plugs, fork drain bolts, rear axle drain plugs, and brake caliper banjo bolts, marine engines including outboard motor drain plugs, inboard engine oil changes, stern drive service, and marine generator maintenance, industrial equipment including gearbox drain plugs, hydraulic reservoir drain connections, lubrication system plugs, and compressor drain valves, and appliance applications including water heater drain valves, pressure washer pump connections, and hydraulic equipment service points.
The manufacturing process for precision copper crush washers begins with material selection of annealed soft copper typically ASTM B152 half-hard or soft temper depending on application requirements, precision blanking using progressive dies creating accurate inner diameter, outer diameter, and thickness dimensions within ±0.1mm tolerance, chamfering or beveling operations creating tapered sealing edge on inner diameter typically 15-30 degree angle concentrating compression forces, annealing heat treatment in controlled atmosphere furnaces at 400-600°C followed by controlled cooling producing dead-soft fully annealed condition for maximum compressibility and sealing performance, surface cleaning removing oxidation and contamination, quality inspection including dimensional verification using precision measuring equipment, visual inspection for surface defects, and packaging preventing oxidation during storage. Our copper crush washer capabilities include inner diameters from 6mm to 50mm accommodating common bolt and plug sizes, outer diameters from 10mm to 70mm providing adequate sealing area, thickness ranging from 1.0mm to 3.0mm controlling compression characteristics, various configurations including flat washers, bonded washers with rubber backing, and specialty profiles for specific applications, material conditions from dead-soft annealed for maximum conformability to half-hard for higher strength applications, and surface treatments including tin plating improving corrosion resistance and reducing copper oxidation or bare copper finish for general applications. Copper crush washers are typically single-use components replaced during every maintenance service as plastic deformation during initial compression prevents effective resealing, though multiple reuse possible in some low-pressure applications with proper torque specifications.
Copper Material Grades and Gasket Specifications
Copper Material Specifications and Standards for Gaskets
| Copper Grade | International Designation | Key Properties | Typical Gasket Applications | Standards |
|---|---|---|---|---|
| Copper C11000 | CW004A (EN), C1100 (JIS), T2 (GB) | 99.9% pure copper, excellent thermal conductivity 391 W/m·K, malleable | General gaskets, automotive washers, industrial sealing | ASTM B152, BS EN 1652, DIN EN 13599, JIS H3100, IS 191 |
| Copper C10200 | CW008A (EN), C1020 (JIS), TU2 (GB) | Oxygen-free copper, ultra-low outgassing, vacuum-tight | Vacuum gaskets, UHV conflat gaskets, scientific instruments | ASTM B170, BS EN 1652, DIN EN 13599, JIS H3100 |
| Annealed Soft Copper | Various base grades | Dead-soft fully annealed, maximum conformability | Crush washers, high-conformability gaskets, vacuum seals | Per ASTM B601 annealing |
| Half-Hard Copper | Various base grades | Partial work hardening, moderate strength with formability | Medium-pressure gaskets, reusable washers | Per ASTM temper designations |
Copper Gasket Performance Properties
| Property | Annealed Soft | Half-Hard | Oxygen-Free | Plated Copper |
|---|---|---|---|---|
| Tensile Strength (MPa) | 200-220 | 250-290 | 200-220 | 200-250 |
| Elongation (%) | 45-55 | 15-25 | 45-55 | 35-45 |
| Hardness (HB) | 40-45 | 60-75 | 40-45 | 45-55 |
| Thermal Conductivity (W/m·K) | 391 | 385 | 394 | 350-380 |
| Max Temperature | 400°C continuous | 350°C continuous | 400°C continuous | 250°C (plating dependent) |
| Conformability | Excellent | Good | Excellent | Good |
| Reusability | Limited | Moderate | Limited | Moderate |
Manufacturing Processes and Technology
Our precision copper gasket manufacturing facility employs multiple manufacturing processes including precision blanking using progressive dies with close-tolerance punches and dies creating accurate inner and outer diameters, waterjet cutting for large gaskets and complex profiles using high-pressure water stream (up to 60,000 PSI) with abrasive particles cutting copper without heat-affected zones or work hardening, laser cutting using fiber or CO2 lasers for intricate geometries and tight tolerances with minimal kerf width, CNC machining including turning for thick gaskets requiring precision machined sealing surfaces and milling for custom profiles and pockets, stamping operations for high-volume flat washers and simple gaskets, annealing furnaces with controlled atmosphere (nitrogen or hydrogen) preventing oxidation during heat treatment, surface grinding and lapping for critical flatness specifications achieving 0.01mm flatness over gasket diameter, electroplating facilities for tin, nickel, or silver coating application, and quality measurement equipment including optical comparators, coordinate measuring machines, and surface finish testers.
Manufacturing Process Flow: Copper sheet or plate material procurement → Material inspection and dimensional verification → Cutting operation (blanking/waterjet/laser/machining) → Deburring and edge finishing → Annealing heat treatment if required → Surface finishing (grinding/lapping if specified) → Plating operations if specified → Dimensional inspection → Surface finish verification → Flatness measurement → Packaging preventing oxidation → Shipment.
Typical Copper Gasket Types and Applications
Flat Ring Gaskets: Circular gaskets with concentric inner and outer diameters for pipe flanges, valve bonnets, and equipment connections, available in ASME B16.5 flange sizes from 1/2″ to 24″ and metric DN15 to DN600, thickness 1.5mm to 6mm, raised face or flat face configurations, and temperature ratings to 400°C.
Copper Crush Washers: Tapered sealing washers for threaded connections including M6 to M30 metric sizes, 1/4″ to 1-1/4″ unified sizes, automotive drain plug washers (M12, M14, M16, M20 common), hydraulic banjo bolt washers, and fuel system sealing washers with single-use replacement recommendation.
Conflat (CF) Copper Gaskets: Knife-edge sealing gaskets for ultra-high vacuum applications including CF16 through CF200 sizes, oxygen-free copper material, knife-edge groove profile, leak rates below 10^-11 mbar·L/s, and scientific research vacuum systems.
Solid Copper O-Rings: Circular cross-section sealing rings for groove applications, available in standard AS568 O-ring sizes, metric sizes, custom diameters, wire diameters from 1mm to 6mm, and static or dynamic sealing applications.

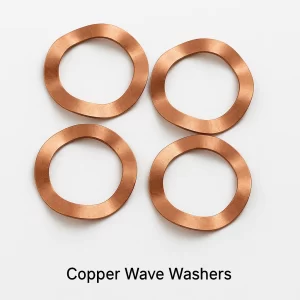

Corrugated Copper Gaskets: Gaskets with wave or corrugation pattern enhancing elasticity and conformability, used for irregular surfaces, thermal expansion accommodation, vibration-resistant sealing, and large diameter flanges.
Spiral Wound Gaskets with Copper: Combination of copper winding with graphite or PTFE filler, used for high-pressure flanges, high-temperature applications, ASME pressure vessel code applications, and critical process equipment sealing.
Quality Control and Inspection
Dimensional Inspection: Precision measurement of inner diameter, outer diameter, thickness using micrometers and calipers within ±0.05-0.2mm tolerances, hole position verification using coordinate measuring machines, profile measurement using optical comparators, and edge quality assessment.
Surface Quality Verification: Surface finish measurement using contact profilometers verifying Ra values from 0.8 to 6.3 depending on application, flatness measurement using granite surface plates and dial indicators achieving 0.01-0.05mm specifications, and visual inspection for surface defects including scratches, pits, or contamination.
Material Verification: Chemical composition analysis confirming copper grade, hardness testing validating annealing condition, and material certificates documenting properties.
Leak Testing: Helium leak testing for vacuum gaskets validating leak rates, pressure testing for high-pressure applications, and functional testing with actual mating surfaces where feasible.
Documentation: Material certificates with chemical analysis, dimensional inspection reports, surface finish verification, flatness measurement records, and certificate of conformance.
Industries and Applications
Automotive Industry: Exhaust manifold gaskets, oil drain plug crush washers, transmission drain washers, fuel injector sealing washers, brake line copper washers, turbocharger gaskets, and cooling system gaskets.
Oil and Gas Industry: Wellhead flange gaskets, valve bonnet gaskets, pipeline flange sealing, heat exchanger gaskets, compressor gaskets, and high-pressure equipment connections per API standards.
Vacuum Technology: Conflat copper gaskets for ultra-high vacuum, vacuum chamber sealing, scientific instrumentation, particle accelerators, thin film deposition systems, and research equipment.
Aerospace Industry: Aircraft fuel line washers, hydraulic system sealing, engine component gaskets, APU gaskets, and critical aerospace fluid system sealing.
Marine Industry: Marine engine gaskets, exhaust system sealing, cooling system gaskets, propulsion system sealing, and marine equipment connections resistant to saltwater.
Chemical Processing: Reactor flange gaskets, distillation equipment sealing, pump gaskets, piping system flanges, and corrosion-resistant process equipment sealing.
Power Generation: Steam turbine gaskets, heat exchanger sealing, condenser gaskets, boiler connections, and power plant piping systems.
Hydraulic Systems: Hydraulic cylinder gaskets, valve body sealing, manifold gaskets, high-pressure fittings, and hydraulic equipment connections.
Performance Specifications
Copper Gasket Performance Parameters
| Application Type | Temperature Range | Pressure Range | Thickness Range | Typical Configuration |
|---|---|---|---|---|
| Automotive Exhaust | 200-800°C | 0.5-3 bar | 1.5-3.0mm | Flat ring, crush washer |
| Hydraulic Systems | -40 to 150°C | 100-400 bar | 1.0-2.5mm | Crush washer, O-ring |
| Vacuum Systems | -200 to 200°C | 10^-11 mbar (vacuum) | 1.0-3.0mm | Conflat knife-edge |
| Industrial Flanges | -50 to 400°C | 10-150 bar | 1.5-6.0mm | Flat ring, spiral wound |
| Oil & Gas | -29 to 400°C | 70-700 bar | 2.0-6.0mm | Ring joint, spiral wound |
Frequently Asked Questions
Q1: Can copper gaskets be reused?
Copper gaskets generally single-use due to plastic deformation during compression. Reuse possible in low-pressure applications with proper torque control, but replacement recommended for critical sealing. Annealed soft copper washers typically single-use only.
Q2: What temperature range can copper gaskets withstand?
Copper gaskets operate continuously up to 400°C and handle short-term excursions to 600°C. Excellent performance from cryogenic temperatures (-200°C) to high temperatures, though above 400°C oxidation becomes concern requiring protective atmosphere or plating.
Q3: How do I select copper gasket thickness?
Thickness depends on flange pressure rating, surface finish, and compression capability. General guidelines: 1.5-2.5mm for low pressure, 3-4mm for medium pressure, 4-6mm for high pressure. Thicker gaskets provide more conformability but require higher bolt loads.
Q4: What is the difference between annealed and half-hard copper gaskets?
Annealed soft copper fully heat-treated for maximum malleability, conforming completely to surface irregularities, ideal for critical sealing. Half-hard copper partially work-hardened providing higher strength, suitable for moderate pressures where some resilience needed.
Q5: What documentation is provided with copper gasket shipments?
Material certificates with chemical analysis, dimensional inspection reports with actual measured values, surface finish verification where specified, flatness measurement data for critical gaskets, certificate of conformance, and traceability documentation.
Why Choose Our Copper Gasket Services
Three Decades of Sealing Solutions Expertise: 30+ years manufacturing copper gaskets for automotive, oil and gas, vacuum technology, aerospace, and industrial applications across global markets with deep expertise in sealing principles and material science.
Comprehensive Manufacturing Capabilities: Precision blanking, waterjet cutting, laser cutting, CNC machining, annealing furnaces, surface grinding/lapping, electroplating facilities, and complete dimensional inspection equipment.
Multiple Copper Grades and Conditions: Pure copper C11000, oxygen-free copper C10200 for vacuum, annealed soft for maximum conformability, half-hard for strength, and various plating options.
Custom Gasket Design and Engineering: Engineering consultation, FEA analysis, custom profiles and geometries, prototype development, leak testing validation, and seal performance optimization.
Quality Testing and Validation: Dimensional inspection using CMM and optical comparators, surface finish measurement, flatness verification, material verification, leak testing capability, and complete documentation.
Standards Compliance: ASME B16.20 metallic gaskets, API 6A oil and gas, ISO 3601 for O-rings, vacuum technology standards, automotive specifications, and customer engineering requirements.
Competitive Manufacturing Advantage: India manufacturing provides 30-40% cost savings versus North American or European manufacturers without compromising dimensional accuracy, surface quality, or sealing performance.
Fast Turnaround Options: Standard 4-6 week lead times for custom gaskets, 1-2 week expedited delivery for standard sizes from inventory, prototype services, and flexible minimum order quantities.
Glossary of Technical Terms
Gasket: Mechanical seal filling space between mating surfaces preventing leakage.
Crush Washer: Single-use sealing washer designed for controlled plastic deformation during compression.
Conflat (CF): Ultra-high vacuum flange and gasket system using knife-edge compression seal.
Annealing: Heat treatment softening metal through controlled heating and cooling cycle.
Dead-Soft: Fully annealed condition providing maximum malleability and conformability.
Half-Hard: Partial work hardening providing moderate strength with good formability.
Oxygen-Free Copper: High-purity copper with minimized oxygen content for vacuum and high-conductivity applications.
Outgassing: Release of absorbed gases from material surface, critical in vacuum applications.
Surface Finish (Ra): Roughness average measurement of surface texture in micrometers.
Flatness: Deviation from perfect plane across gasket surface.
Conformability: Ability of gasket material to deform and fill surface irregularities.
Compression Set: Permanent deformation remaining after gasket compression load removed.
