Comprehensive Overview of Copper Grounding Ferrules and Copper Earthing Ferrules
We are one of the leading manufacturers and exporters of Copper Grounding Ferrules and Copper Earthing Ferrules from India. We have been supplying precision copper grounding terminals, copper earthing connectors, copper compression ferrules, and copper electrical grounding hardware to the world market for many decades. Our state-of-the-art manufacturing facility specializes in producing high-quality copper grounding ferrules using advanced hot forging technology, precision CNC machining, cold heading processes, compression forming operations, and comprehensive surface treatment capabilities. With over three decades of global experience in copper grounding product manufacturing, we serve diverse industries including electrical power distribution copper grounding ferrules, substation earthing ferrules, telecommunications tower grounding ferrules, solar photovoltaic system earthing hardware, wind turbine grounding connections, lightning protection system ferrules, industrial plant earthing systems, residential electrical grounding, railway electrical grounding ferrules, and oil and gas facility grounding hardware. Our expertise encompasses working with various copper grades including pure Copper C11000 grounding ferrules offering excellent electrical conductivity and corrosion resistance, Copper C10200 oxygen-free grounding ferrules for high-performance electrical applications, tin-plated copper grounding ferrules for enhanced corrosion protection, and Silicon Bronze grounding ferrules for marine grounding applications. We manufacture copper grounding ferrules ranging from small 16mm² cable ferrules to large 300mm² conductor ferrules for heavy-duty industrial grounding systems, all maintaining superior electrical conductivity, low contact resistance, mechanical strength, and reliable long-term performance.
Our advanced manufacturing capabilities in producing precision copper grounding ferrules extend across multiple manufacturing processes including hot forging for large diameter copper grounding ferrules with controlled grain flow, cold heading for medium size ferrules with consistent dimensions, CNC machining for precision internal bore and external dimensions, compression forming for tubular ferrule shapes, drilling and reaming for cable entry holes, threading operations for threaded grounding ferrules, surface preparation including degreasing and cleaning, tin plating for corrosion protection through electroplating or hot dip tinning, and quality testing including electrical conductivity verification and dimensional inspection. Our engineering team possesses deep technical knowledge of copper grounding system requirements, electrical conductivity specifications, contact resistance minimization, cable termination methods, compression ratios for reliable connections, and international grounding standards ensuring every copper grounding ferrule meets or exceeds customer specifications and electrical safety codes. Our quality management system complies with ISO 9001:2015 standards, electrical safety standards including IEC specifications, IEEE grounding standards, NEC electrical code requirements, and customer-specific grounding ferrule requirements. We maintain complete traceability of copper raw material certificates, detailed manufacturing process documentation, electrical conductivity test records, compression test results, and material test reports for every batch of copper grounding ferrules produced. Our customers across North America, European Union countries, United Kingdom, Australia, Middle East regions, and Southeast Asian markets trust our copper grounding ferrule expertise for their critical electrical safety and grounding applications.

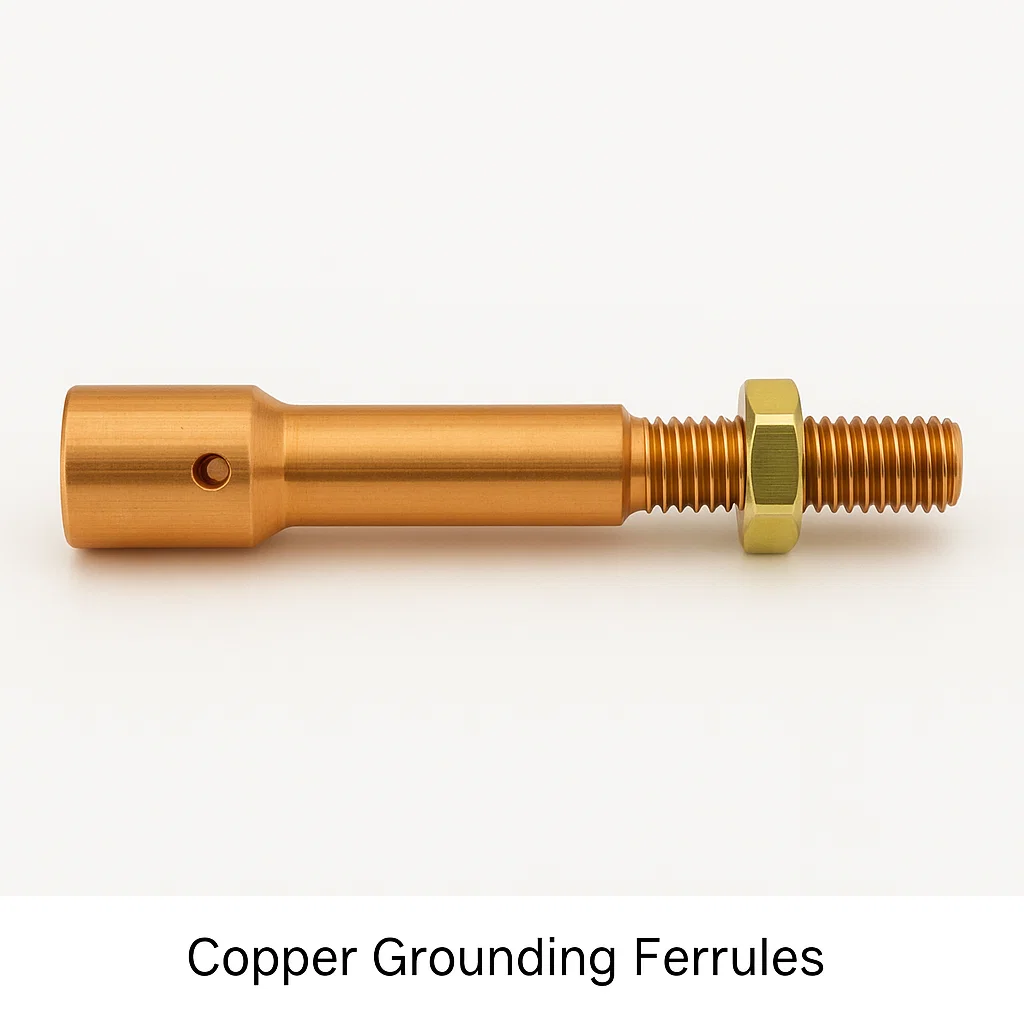

Copper Grounding Ferrules – Electrical Earthing Terminal Connectors
Copper Grounding Ferrules represent specialized electrical connectors designed to terminate grounding conductors and establish low-resistance electrical connection between grounding cables and grounding electrodes, equipment enclosures, or grounding bus bars in electrical power systems, lightning protection systems, telecommunications infrastructure, and industrial facilities. These copper grounding ferrules are manufactured in various configurations including compression ferrules installed using hydraulic compression tools, mechanical set-screw ferrules with threaded fasteners, bolted ferrules with through-bolt connections, weld-on ferrules for permanent installations, pin-type ferrules for quick connections, and socket-type ferrules for mating with pin terminals. Copper grounding ferrules find extensive applications in electrical substation grounding grids connecting ground mat conductors, power distribution system grounding connecting neutral conductors and equipment ground, telecommunications tower grounding establishing lightning protection and equipment ground, solar photovoltaic system grounding connecting array frames and inverters to grounding system, wind turbine grounding providing lightning protection and electrical safety ground, industrial facility grounding connecting machinery and equipment enclosures, residential electrical grounding connecting service entrance ground, lightning protection system connections establishing low-impedance path to earth, railway electrical system grounding, and oil and gas facility grounding in hazardous locations. The design of copper grounding ferrules requires consideration of conductor size accommodation, compression barrel dimensions for proper crimp, contact surface area for low resistance connection, mechanical strength for permanent installation, corrosion resistance for outdoor exposure, and compatibility with various grounding electrode materials.
Our copper grounding ferrule manufacturing services include engineering consultation for ferrule selection based on conductor size and grounding system requirements, material recommendation considering electrical conductivity and environmental conditions, custom ferrule design for non-standard conductor sizes or connection configurations, prototype development for fit and function validation, high-volume production with consistent electrical and mechanical properties, various ferrule styles including compression, mechanical, and bolted types, cable size range accommodation from 16mm² to 300mm² or AWG equivalents, surface treatment including tin plating or bare copper options, and complete documentation with material certificates and electrical test reports. We accommodate copper grounding ferrule conductor sizes ranging from 16mm² (6 AWG) for residential applications to 300mm² (600 kcmil) for heavy industrial and utility grounding, with compression barrel lengths optimized for full conductor engagement typically 4-6 times conductor diameter, wall thickness providing mechanical strength without excessive compression force requirements, and overall dimensions conforming to industry standards. Material specifications conform to ASTM B187 for copper wire rod, ASTM B1 for hard-drawn copper wire for electrical conductors, ASTM B3 for soft or annealed copper wire, and corresponding international standards including IEC 60228 for conductors of insulated cables, EN designations for European copper grades, and IS 8130 for Indian copper conductor specifications. The lead time for copper grounding ferrule production typically ranges from four to six weeks depending on ferrule size, quantity, surface treatment requirements, and testing specifications.
Copper Material Grades and Electrical Specifications
Copper Material Specifications and Standards for Grounding Ferrules
| Copper Grade | International Designation | Key Properties | Typical Applications | Standards |
|---|---|---|---|---|
| Copper C11000 | CW004A (EN), C1100 (JIS), T2 (GB) | 99.9% pure copper, 100% IACS conductivity, excellent corrosion resistance | General grounding ferrules, earthing terminals, grounding connectors | ASTM B187, BS EN 1652, DIN EN 13601, JIS H3250, IS 8130 |
| Copper C10200 | CW008A (EN), C1020 (JIS), TU2 (GB) | Oxygen-free copper, 101% IACS conductivity, premium electrical | High-performance grounding, critical electrical systems | ASTM B170, IEC 60228, BS EN 1652, JIS H3250 |
| Tin-Plated Copper | Base C11000 with Sn coating | Copper with tin plating 3-15 microns, enhanced corrosion resistance | Outdoor grounding, marine environments, corrosive atmospheres | ASTM B33, ASTM B545, IEC 60228 |
| Silicon Bronze C65500 | CW115C (EN), CAC406 (JIS) | High strength, excellent marine corrosion resistance, 7% IACS | Marine grounding, offshore platforms, coastal installations | ASTM B98, BS EN 12163, JIS H3250 |
Copper Grounding Ferrule Electrical Properties
| Property | C11000 Copper | C10200 Copper | Tin-Plated Copper | Silicon Bronze |
|---|---|---|---|---|
| Electrical Conductivity (% IACS) | 100% | 101% | 98-100% | 7% |
| Resistivity (nΩ·m) | 17.24 | 17.00 | 17.5 | 240 |
| Contact Resistance (µΩ) | <50 | <40 | <60 | <200 |
| Tensile Strength (MPa) | 220-260 | 210-240 | 220-260 | 380-520 |
| Corrosion Resistance | Excellent | Excellent | Excellent | Excellent |
| Temperature Coefficient | 0.00393/°C | 0.00393/°C | 0.00393/°C | 0.00380/°C |
| Current Carrying Capacity | Excellent | Excellent | Excellent | Good |
Manufacturing Processes and Technology
Our precision copper grounding ferrule manufacturing facility employs multiple manufacturing processes including hot forging using hydraulic presses for large diameter grounding ferrules with controlled grain structure, cold heading machines for medium size ferrules with excellent dimensional consistency, CNC turning and boring operations for precision internal bore dimensions critical for conductor fit, drilling operations for cable entry holes and inspection holes, threading operations for threaded grounding ferrules using thread rolling or cutting, compression forming for tubular ferrule shapes, surface preparation including degreasing, pickling, and cleaning, electroplating facilities for tin plating with controlled thickness 3-15 microns, hot dip tinning for thick tin coating applications, and quality testing equipment including four-point probe conductivity meters, micro-ohm meters for contact resistance measurement, and dimensional inspection tools.
Manufacturing Process Flow: Copper raw material procurement and inspection → Material cutting to billet size → Forging or heading operations → CNC machining bore and external features → Drilling cable entry holes → Threading if required → Deburring and cleaning → Surface treatment (tin plating if specified) → Quality inspection and electrical testing → Packaging and labeling → Final shipment.
Copper Grounding Ferrule Types and Specifications
Standard Copper Grounding Ferrule Dimensions
| Conductor Size | Ferrule Bore Diameter (mm) | Ferrule Length (mm) | Wall Thickness (mm) | Connection Type | Current Rating |
|---|---|---|---|---|---|
| 16mm² (6 AWG) | 5.5 | 30 | 2.5 | Compression/Mechanical | 75A |
| 25mm² (4 AWG) | 7.0 | 35 | 3.0 | Compression/Mechanical | 100A |
| 35mm² (2 AWG) | 8.0 | 40 | 3.5 | Compression/Mechanical | 125A |
| 50mm² (1/0 AWG) | 9.5 | 45 | 4.0 | Compression/Mechanical | 170A |
| 70mm² (2/0 AWG) | 11.5 | 50 | 4.5 | Compression/Bolted | 195A |
| 95mm² (3/0 AWG) | 13.0 | 60 | 5.0 | Compression/Bolted | 230A |
| 120mm² (250 kcmil) | 15.0 | 70 | 5.5 | Compression/Bolted | 270A |
| 185mm² (350 kcmil) | 18.5 | 85 | 6.0 | Compression/Bolted | 330A |
| 240mm² (500 kcmil) | 21.0 | 100 | 6.5 | Compression/Bolted | 385A |
| 300mm² (600 kcmil) | 23.5 | 120 | 7.0 | Compression/Bolted | 445A |
Copper Grounding Ferrule Connection Types
| Connection Type | Description | Installation Method | Typical Applications |
|---|---|---|---|
| Compression Ferrule | Tubular barrel crimped onto conductor | Hydraulic compression tool | Permanent connections, utility grounding |
| Mechanical Set-Screw | Barrel with set screws securing conductor | Allen wrench or screwdriver | Service entrance, panel grounding |
| Bolted Ferrule | Through-bolt securing conductor | Wrench or socket | Heavy-duty industrial, substation |
| Pin-Type Ferrule | Male pin connection | Insertion into socket | Modular systems, quick connections |
| Weld-On Ferrule | Welded to conductor or electrode | Exothermic welding | Permanent grounding grid connections |
Quality Control and Testing
Electrical Testing: Every batch of copper grounding ferrules undergoes electrical conductivity testing using four-point probe method verifying minimum 100% IACS for pure copper C11000, contact resistance measurement using micro-ohm meter confirming resistance below 50 microhms at properly crimped connections, and current carrying capacity validation for rated ampacity. Testing ensures reliable electrical performance in grounding applications.
Dimensional Inspection: Comprehensive dimensional inspection includes bore diameter measurement using precision bore gauges ensuring proper conductor fit, overall length verification, wall thickness measurement using ultrasonic thickness gauge, thread inspection for threaded ferrules using go-no-go gauges, and external diameter verification. Dimensional accuracy ensures proper installation and mechanical strength.
Compression Testing: Sample ferrules undergo compression testing simulating field installation conditions, verifying proper conductor retention with minimum pull-out force typically 80% of conductor tensile strength, evaluating compression barrel deformation confirming full conductor engagement, and validating mechanical integrity under load.
Plating Quality Testing: For tin-plated copper grounding ferrules, coating thickness measurement using X-ray fluorescence verifies plating thickness meets specifications typically 3-15 microns, adhesion testing validates plating bond strength, salt spray testing per ASTM B117 evaluates corrosion resistance with test durations 96-1000 hours depending on application, and visual inspection identifies any plating defects.
Documentation: Complete documentation package includes material certificates from copper supplier with chemical analysis and conductivity values, manufacturing process records, electrical test results including conductivity and contact resistance measurements, dimensional inspection reports, compression test results, plating test reports if applicable, and certificate of conformance.
Industries and Applications
Electrical Utility Industry: Copper grounding ferrules for substation grounding grid connections, transmission tower grounding, distribution pole ground connections, transformer neutral grounding, switchgear ground bus connections, and utility metering cabinet grounding.
Telecommunications Industry: Tower grounding ferrules for cell tower lightning protection, telecommunications shelter grounding, antenna grounding connections, coaxial cable shield grounding, equipment rack grounding, and telecommunications infrastructure earthing systems.
Solar Energy Industry: Photovoltaic array frame grounding ferrules, solar panel grounding connections, inverter grounding terminals, solar mounting structure earthing, DC combiner box grounding, and solar farm grounding grid connections.
Wind Energy Industry: Wind turbine tower grounding ferrules, nacelle grounding connections, blade lightning protection grounding, turbine foundation grounding, wind farm collector system grounding, and electrical equipment grounding.
Industrial Facilities: Manufacturing equipment grounding ferrules, electrical panel ground bus connections, motor and machinery grounding, industrial building grounding systems, hazardous location grounding, and process equipment earthing.
Residential and Commercial: Service entrance grounding electrode connections, electrical panel grounding, water pipe bonding connections, building steel grounding, swimming pool bonding, and residential lightning protection systems.
Railway Systems: Railway track grounding ferrules, signaling system grounding, traction power system earthing, railway substation grounding, and locomotive grounding connections.
Oil and Gas Industry: Offshore platform grounding ferrules, refinery equipment grounding, pipeline cathodic protection connections, hazardous area grounding, and petrochemical facility earthing systems.
Performance Specifications
Copper Grounding Ferrule Performance Parameters
| Parameter | Standard Range | Heavy-Duty Range | Notes |
|---|---|---|---|
| Conductor Size | 16mm² – 120mm² | 120mm² – 300mm² | Cable cross-section |
| Electrical Conductivity | 100% IACS min | 100% IACS min | Pure copper C11000 |
| Contact Resistance | <50 µΩ | <30 µΩ | At proper compression |
| Current Carrying Capacity | 75A – 270A | 270A – 445A | Based on conductor size |
| Operating Temperature | -40°C to +90°C | -40°C to +105°C | Ambient conditions |
| Pull-Out Strength | 80% conductor strength | 90% conductor strength | After proper installation |
| Compression Ratio | 6:1 to 8:1 | 6:1 to 10:1 | Barrel to conductor area |
| Plating Thickness | 3-10 microns | 10-20 microns | Tin plating if specified |
Frequently Asked Questions
Q1: What is the difference between compression and mechanical grounding ferrules?
Compression grounding ferrules use hydraulic compression tools applying radial force permanently crimping ferrule barrel onto conductor creating gas-tight connection with maximum contact area and lowest resistance. Mechanical grounding ferrules use set screws tightened with Allen wrench or screwdriver providing removable connection suitable for service entrance and panel applications where future disconnection may be required.
Q2: Why is tin plating recommended for outdoor grounding ferrules?
Tin plating provides enhanced corrosion protection for copper grounding ferrules exposed to outdoor environments, moisture, salt spray, and industrial atmospheres. Tin coating 3-15 microns thick prevents copper oxidation maintaining low contact resistance over time, provides sacrificial protection, enhances solderability if required, and extends service life particularly in coastal or corrosive environments.
Q3: What is the typical lead time for copper grounding ferrule orders?
Standard lead time is four to six weeks from purchase order confirmation to shipment, accounting for copper material procurement, forging or heading operations, CNC machining, surface treatment including tin plating if specified, electrical testing and quality inspection, and packaging. For standard sizes with materials in stock, expedited delivery within 2-3 weeks may be possible.
Q4: How do I select the correct ferrule size for my grounding conductor?
Select grounding ferrule with bore diameter matching conductor outer diameter allowing easy insertion with minimal clearance typically 0.5-1.0mm. Ferrule compression barrel length should be minimum 4-6 times conductor diameter for adequate compression area. Consult ferrule manufacturer specifications or use industry standards like IEEE 837 for conductor-ferrule compatibility tables based on conductor size.
Q5: What documentation is provided with copper grounding ferrule shipments?
We provide comprehensive documentation including material certificates from copper supplier with chemical analysis and conductivity values, electrical test results showing conductivity percentage and contact resistance measurements, dimensional inspection reports, compression test data, tin plating test reports including thickness and adhesion if applicable, certificate of conformance stating compliance with specifications, and traceability documentation linking production batches to material certifications.
Why Choose Our Copper Grounding Ferrule Services
Three Decades of Grounding Product Excellence: With over 30 years of copper grounding ferrule manufacturing experience serving electrical utilities, telecommunications, renewable energy, industrial facilities, and construction industries across global markets, we have developed deep expertise in grounding system requirements, copper forging processes, and electrical performance optimization.
Comprehensive Manufacturing Capabilities: Our integrated manufacturing facility houses forging equipment, cold heading machines, CNC machining centers for precision bore dimensions, threading equipment, electroplating facilities for tin plating, and complete electrical testing equipment enabling vertical integration from copper raw material to finished tested grounding ferrules.
Superior Electrical Performance: Our copper grounding ferrules manufactured from high-purity copper C11000 provide minimum 100% IACS electrical conductivity, contact resistance below 50 microhms at proper compression, current carrying capacity meeting or exceeding industry standards, and reliable long-term electrical performance critical for safety grounding applications.
Wide Range of Conductor Sizes: We manufacture copper grounding ferrules accommodating conductor sizes from 16mm² for residential applications to 300mm² for heavy industrial and utility substation grounding, with compression, mechanical, and bolted connection options available across size range.
Quality Assurance and Testing: Every batch undergoes electrical conductivity testing, contact resistance measurement, dimensional inspection, compression testing validating mechanical strength, plating quality testing for tin-plated ferrules, and complete documentation providing electrical performance verification and conformance certification.
Engineering Support Services: Our experienced engineering team provides ferrule selection guidance based on conductor size and grounding system requirements, material recommendation considering environmental conditions and conductivity needs, compression ratio calculations for proper installation, custom ferrule design for non-standard applications, and technical consultation for grounding system optimization.
Competitive Manufacturing Advantage: Manufacturing in India provides significant cost advantages allowing us to offer copper grounding ferrule products typically 30-40% lower cost than North American or European manufacturers without compromising copper purity, electrical conductivity, mechanical properties, or quality standards.
International Standards Compliance: Our copper grounding ferrules conform to international standards including IEC 60228 for conductors, IEEE 837 for permanent connections in substation grounding, NEC electrical code requirements, ASTM copper material specifications, and customer-specific grounding system requirements ensuring compliance with electrical safety codes worldwide.
Glossary of Technical Terms
Grounding Ferrule: Electrical connector terminating grounding conductor establishing low-resistance connection to grounding system.
Earthing: Electrical connection to earth providing safety path for fault currents and lightning, synonymous with grounding.
IACS: International Annealed Copper Standard reference for electrical conductivity where pure copper equals 100%.
Contact Resistance: Electrical resistance at interface between ferrule and conductor or connection point, measured in microhms.
Compression Ferrule: Tubular connector permanently crimped onto conductor using hydraulic compression tool.
Mechanical Ferrule: Connector using set screws or mechanical means to secure conductor allowing future removal.
Hydraulic Compression: Installation method using hydraulic tool applying controlled radial force crimping ferrule.
Pull-Out Strength: Mechanical force required to extract conductor from ferrule after proper installation.
Tin Plating: Electroplated or hot-dip tin coating applied to copper surface for corrosion protection.
Grounding Electrode: Conductive element establishing electrical contact with earth including ground rods, plates, or grids.
Ground Bus: Copper bar or conductor in electrical panel or equipment collecting multiple ground connections.
Lightning Protection System: System of conductors and grounding providing low-impedance path for lightning current to earth.
