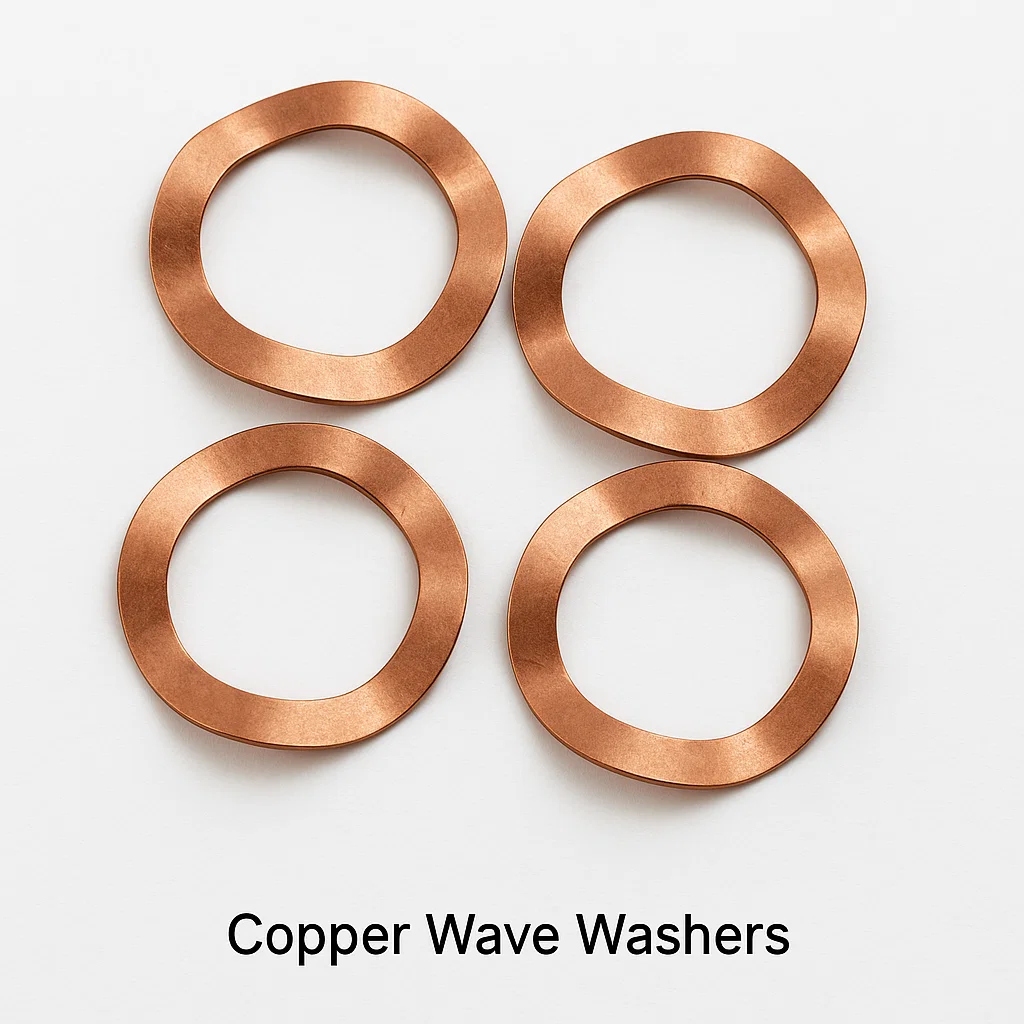

Copper Wave Washers

Comprehensive Overview of Copper Wave Washers: Precision Spring Components for Engineering Applications

We are a premier manufacturer and global exporter of high-performance Copper Wave Washers from India, specializing in the design and production of precision spring washers for demanding engineering applications. For many decades, we have supplied critical wave spring components to the world’s leading industries, leveraging our deep metallurgical expertise and advanced manufacturing capabilities. Our state-of-the-art production facility is dedicated to crafting high-quality copper wave washers using sophisticated stamping, forming, and heat treatment processes. With extensive experience in spring component manufacturing, we serve a diverse array of sectors including automotive assembly and powertrains, aerospace and defense systems, heavy industrial machinery, electrical and electronics manufacturing, precision medical devices, renewable energy systems, and consumer durable goods. Our technical proficiency encompasses a wide range of copper alloys, including high-conductivity Electrolytic Tough Pitch Copper C11000 for electrical applications, high-strength Beryllium Copper C17200 for superior spring performance and fatigue resistance, resilient Phosphor Bronze C51000 for excellent wear resistance and cyclic loading, and general-purpose Brass C26000 for cost-effective solutions. We manufacture copper wave washers in a vast size range, from miniature components under 3mm in diameter for micro-electronics to large washers exceeding 200mm for heavy industrial equipment, all engineered to provide consistent spring force, reliable load-bearing capacity, and long-term performance in critical assemblies.

Our advanced manufacturing capabilities for precision copper wave washers integrate multiple sophisticated processes, including computer-aided design and engineering for precise wave geometry and spring rate calculation, high-speed progressive die stamping for volume production with exceptional dimensional consistency, multi-stage precision forming to create accurate wave peaks and valleys, CNC machining and blanking for prototype and low-volume specialized orders, precise heat treatment and aging processes to achieve exact temper and spring properties, stress relief annealing to enhance performance stability, and a variety of surface finishing and plating operations including tin plating for corrosion resistance and solderability, nickel plating for high-temperature protection, and passivation for bare copper surfaces. Our engineering team possesses profound expertise in spring mechanics, including spring rate calculation, deflection analysis, load-bearing capacity optimization, fatigue life prediction, stress distribution modeling, and compliance with international standards such as DIN 1373 for wave springs, ASTM B370 for copper alloy spring wire, and customer-specific requirements, ensuring every copper wave washer delivers optimal performance and reliability in its intended application. Our ISO 9001:2015 certified quality management system governs every aspect of production, and we maintain complete material traceability with mill certificates, detailed manufacturing process records, comprehensive dimensional inspection reports, spring force testing data, and material test reports for every production batch, providing our global customers with unparalleled quality assurance and documentation support.

---

Copper Wave Washers – Advanced Spring Solutions for Axial Load and Preload Applications

Copper Wave Washers are uniquely engineered disc springs characterized by a wave-like formation around their circumference, designed to provide a controlled spring force in confined axial spaces. Unlike flat washers or Belleville washers, wave washers offer a lower spring rate with greater deflection, making them ideal for applications requiring cushioning, tensioning, or compensation for thermal expansion and wear. The fundamental principle involves the elastic deformation of the wave peaks when compressed, storing energy and exerting a continuous opposing force. This makes them indispensable for maintaining electrical contact pressure, absorbing shock and vibration, and taking up play in assemblies. The inherent properties of copper alloys—including excellent electrical conductivity, corrosion resistance, and non-magnetic characteristics—make copper wave washers the superior choice for specialized applications in the electrical, electronic, and corrosive environments.

Extended Applications of Copper Wave Washers:

• Electrical & Electronics: PCB board leveling spacers, battery contact springs, heat sink mounting assemblies, connector backshell grounding, and EMI/RFI shielding contacts where continuous pressure and conductivity are paramount.

• Automotive Engineering: Electric motor brush springs, sensor mounting assemblies, connector systems, vibration damping in control modules, and compensation for thermal expansion in lighting systems.

• Aerospace & Defense: Avionics racking systems for secure card retention, waveguide assemblies, electrical bonding in radar systems, and vibration isolation in navigation equipment, leveraging their non-magnetic properties.

• Industrial Machinery: Bearing pre-load elements in rotating assemblies, light-duty thrust bearings, gear train anti-backlash components, and pneumatic valve actuators.

• Medical Devices: Precision surgical instrument springs, imaging equipment assemblies, and disposable medical device mechanisms where biocompatible materials are required.

• Telecommunications: RF connector interfaces, base station antenna components, and fiber optic connector assemblies requiring consistent contact force.

• Consumer Electronics: Smartphone haptic feedback mechanisms, laptop keyboard suspensions, and camera lens assemblies.

Our comprehensive copper wave washer manufacturing and service portfolio includes:

• Advanced Engineering Consultation: Spring design optimization using FEA analysis, material selection based on electrical, thermal, and mechanical requirements, and application-specific failure mode analysis.

• Prototype Development & Validation: Rapid prototyping with spring force validation, deflection testing, and fatigue life cycle testing to confirm performance before full-scale production.

• Custom Design & Manufacturing: Capability to produce non-standard wave geometries, including single-wave, multiple-wave, nested, and stacked configurations to achieve specific load-deflection curves.

• High-Volume Production: Leveraging high-speed progressive stamping presses for millions of pieces with consistent quality, tight tolerances, and competitive pricing.

• Full Material & Plating Support: Guidance on the optimal alloy and surface finish for your operating environment, whether it requires high conductivity, high fatigue life, or extreme corrosion resistance.

---

Copper Material Grades and Wave Washer Performance Specifications

Copper Alloy Specifications for High-Performance Wave Washers

Comparative Performance Properties of Copper Wave Washer Materials

---

Advanced Manufacturing Processes and Rigorous Quality Control

Our dedicated manufacturing facility for copper wave washers employs a suite of advanced processes to ensure precision and performance:

• CAD/CAM Engineering: Initial design and toolpath generation using sophisticated software to model spring behavior and optimize tooling design.

• High-Speed Progressive Die Stamping: Utilizing multi-stage dies in high-tonnage presses to blank and form wave geometries in a single, continuous operation for high volumes.

• Precision CNC Stamping & Forming: For complex or low-volume orders, allowing for greater flexibility and quick turnaround without dedicated tooling.

• Precision Heat Treatment: Critical for spring-tempered alloys like Beryllium Copper and Phosphor Bronze, using controlled atmosphere ovens to achieve precise mechanical properties.

• Surface Enhancement: Processes such as barrel tumbling for deburring, electroplating, and passivation to meet specific application requirements.

• Automated Vision Inspection: For 100% dimensional verification and defect detection in high-volume production runs.

Detailed Manufacturing Process Flow:
Raw Material Procurement (Copper Strip/Coil) → Incoming Material Inspection → CAD/Simulation for Tool Design → Progressive Die Stamping & Wave Forming → Initial Deburring → Precision Heat Treatment/Aging → Secondary Finishing (Plating/Passivation) → 100% Spring Force & Dimensional Inspection → Packaging with Anti-Corrosive Materials → Final Documentation & Shipment.

Comprehensive Quality Control and Testing Protocol:

• Dimensional Metrology: Using optical comparators, laser scanners, and CMMs to verify critical parameters like inner/outer diameter, thickness, wave height, and flatness.

• Mechanical Performance Testing: Spring rate testers to validate load-deflection curves, ensuring they meet specified force at a given compression.

• Material Verification: Spectroscopic analysis to confirm alloy composition and review of mill certification for traceability.

• Fatigue Life Testing: Cyclic compression testing on sample batches to predict operational lifespan and validate design calculations.

• Surface Quality Inspection: Microscopic examination for surface defects, burrs, and plating thickness verification.

---

Frequently Asked Questions (FAQ)

Q1: When should I use a wave washer instead of a Belleville or flat washer?
Use a wave washer when you need a lower spring force over a longer deflection in a limited axial space. Belleville washers provide much higher forces in a similar space, while flat washers provide no spring action at all. Wave washers are ideal for compensating for small tolerances and providing light, consistent pressure.

Q2: How does the number of waves affect the performance of the washer?
The number of waves directly influences the spring rate and load distribution. More waves generally result in a smoother, lower spring rate and more even load distribution. Fewer waves create a higher spring rate but with less deflection. Our engineers can help specify the optimal wave count for your specific load and space constraints.

Q3: Can copper wave washers be used in high-temperature environments?
This depends on the alloy. Standard copper (C11000) softens at temperatures above 150-200°C. Beryllium Copper (C17200), however, can retain its spring properties at temperatures up to 250°C, making it suitable for many high-temperature applications like motors and engines.

Q4: Are copper wave washers reusable?
In most cases, yes, provided they have not been compressed beyond their elastic limit or over-stressed during installation. However, for critical applications where consistent spring force is vital, it is often recommended to use a new washer to ensure performance integrity.

Q5: What is the lead time for custom-designed wave washers?
For new custom designs, the typical lead time is 5-7 weeks, which includes design finalization, tooling fabrication, sample approval, and initial production. For standard designs or repeat orders using existing tooling, lead times can be as short as 2-3 weeks, depending on quantity and finishing requirements.

---

Why Partner With Us for Your Copper Wave Washer Needs?

• Three Decades of Spring Component Mastery: With over 30 years of focused expertise in metal stamping and spring manufacturing, we provide unparalleled technical knowledge in copper alloy behavior and spring design principles.

• UL & International Standards Compliance: Our components are manufactured to meet relevant international standards, including DIN, ASTM, and ISO, and we can provide necessary certification for regulated industries.

• End-to-End Manufacturing Solution: From raw material sourcing to final plating and packaging, we control the entire process in-house, ensuring quality, consistency, and cost-effectiveness.

• Broad Material & Finishing Portfolio: We offer the widest selection of copper alloys and surface treatments, allowing you to select the perfect combination of mechanical, electrical, and corrosive properties.

• Robust Engineering & Validation Support: Our engineering team provides more than just parts; we offer analytical support, prototyping, and rigorous testing to ensure your assembly’s success.

• Global Export Competitiveness: Our manufacturing base in India provides significant cost advantages without compromising on world-class quality, delivery reliability, or technical support.

---

Glossary of Technical Terms

• Spring Rate (k): The force required to deflect a spring a unit of distance (e.g., N/mm or lbf/in). It defines the stiffness of the wave washer.

• Deflection: The distance a wave washer is compressed from its free height to its operating height.

• Elastic Limit: The maximum stress to which a material can be subjected without permanent deformation.

• Fatigue Life: The number of compression and release cycles a spring can endure before failing.

• Preload: The initial force applied by a spring when installed in an assembly to eliminate looseness.

• Wave Height: The peak-to-valley height of the wave formation, a critical dimension determining spring characteristics.

• Stress Relaxation: The gradual loss of spring force over time under constant deflection, a key consideration for long-term applications.

---

Call to Action – Contact Our Engineering Team Today

Are you designing an assembly that requires reliable spring pressure, vibration damping, or electrical contact in a compact space? Our technical experts are ready to collaborate with you to provide the ideal copper wave washer solution.

• Request a Detailed Quote: Email your specifications, drawings, and annual usage to sales@jambrass.com for a comprehensive competitive quotation and technical data sheet.

• Speak with a Spring Engineer: Call us at +91-22-43449300 / +91-22-43449323 to discuss your application’s force, deflection, and environmental challenges directly with our engineering team.

• Visit Our Manufacturing Facilities:

  • Corporate Office: 1406, 14th Floor, Dalamal Tower, Nariman Point, Mumbai – 400021, Maharashtra, India

  • Advanced Manufacturing Plant: Plot 10B, GIDC Industrial Estate, Shanker Tekari, Udyognagar, Jamnagar, Gujarat, India – 361004

• Request Compliance & Quality Documentation: Contact us for material certs, RoHS/REACH statements, DFMEA reports, and sample testing protocols.
