Transformer Spades & Bushings

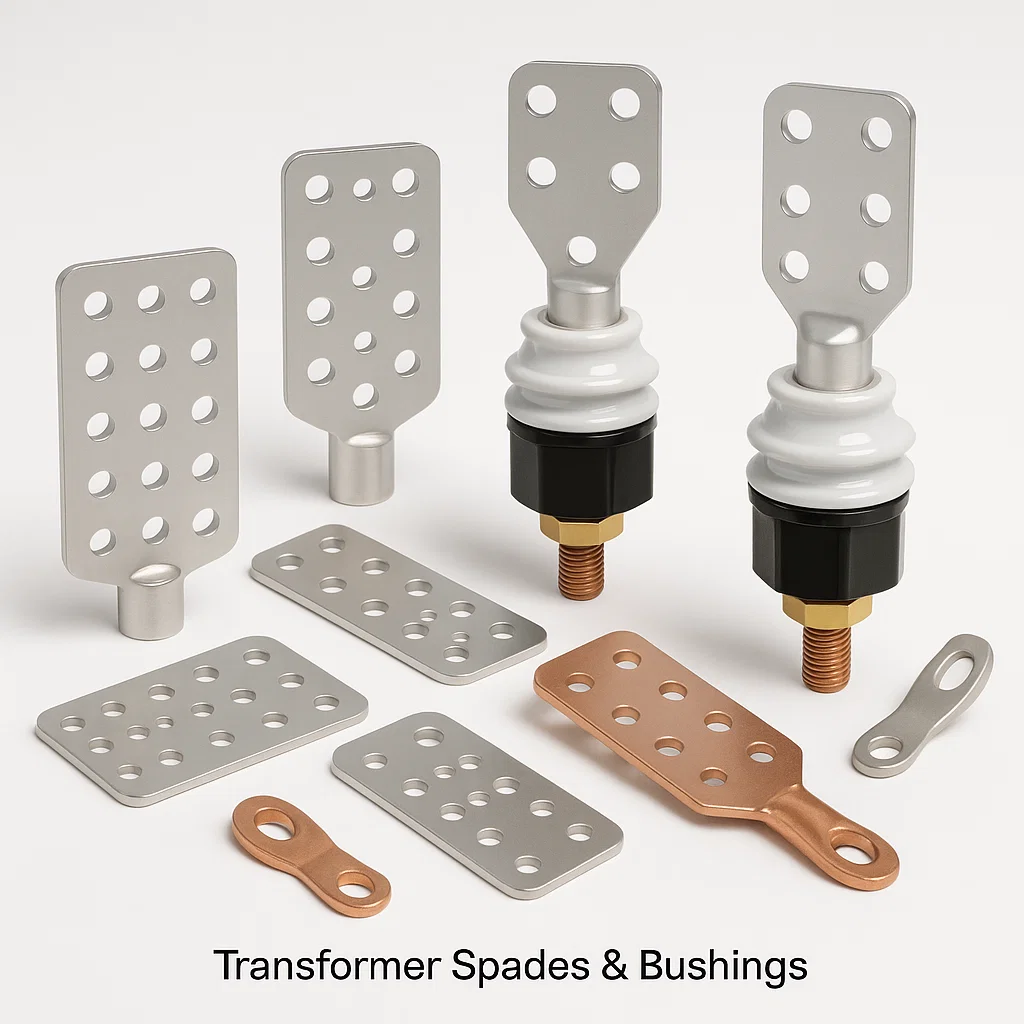

Comprehensive Overview of Transformer Spades and Bushings

We are one of the leading manufacturers and exporters of Transformer Spades, Electrical Bushings, Transformer Terminal Components, and High Voltage Bushings from India. We supply high-quality copper transformer spades, brass bushings, porcelain bushings, epoxy resin bushings, transformer terminal connectors, high-voltage insulating bushings, and custom transformer components to global markets. Our manufacturing facility specializes in producing premium transformer spades and bushings using advanced CNC machining, precision stamping, epoxy resin molding, porcelain manufacturing, electroplating, pressure testing, and comprehensive quality control systems. We serve diverse industries including power generation (utility transformers, power plants, substations), power distribution (distribution transformers, pole-mounted transformers), industrial facilities (manufacturing plants, factories, heavy industry), renewable energy (wind turbines, solar inverters, energy storage), transportation (railway electrification, metro systems, electric vehicles), oil and gas (offshore platforms, refineries, petrochemical plants), mining (mining equipment, mobile substations), and electrical equipment manufacturing (switchgear, motor control centers, electrical panels). Our expertise encompasses various materials including Copper C11000 (99.9% pure – highest conductivity), Brass C36000/C26000 (economical alternatives), Aluminum 6061/6101 (lightweight conductors), Porcelain (high-voltage insulation), Epoxy Resin (medium-voltage bushings), and Silicone Rubber (outdoor weathering). We manufacture transformer spades and bushings ranging from low voltage 1kV to high voltage 765kV, current ratings 100A to 10,000A, with dimensional tolerances ±0.05-0.5mm, maintaining electrical conductivity 95-100% IACS (copper), compliance with IEC 60137, IEEE C57.19, ANSI standards, RoHS, and reliable high-performance electrical connections for transformers, switchgear, and power distribution systems.

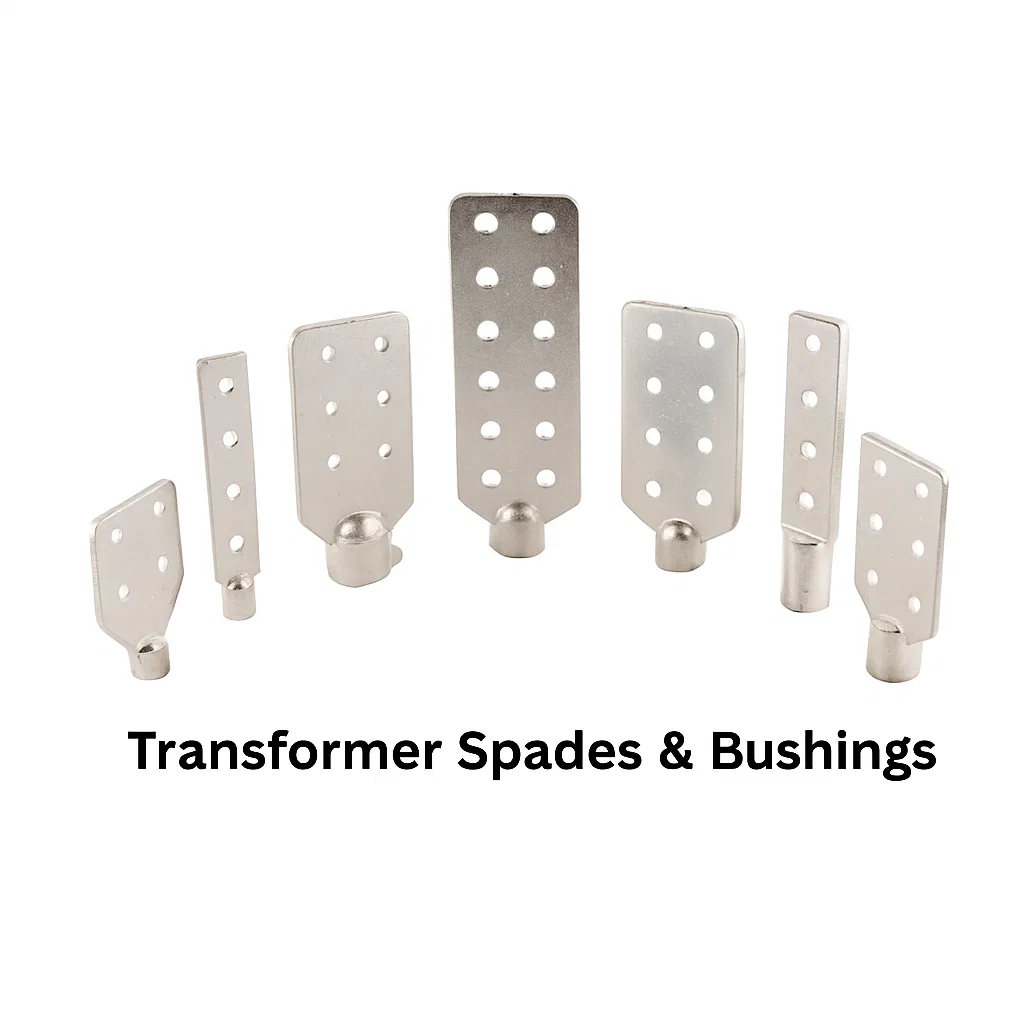

Transformer Spades – Types and Applications

Copper Transformer Spades

Design: Flat or formed copper conductors with mounting holes, designed for bolted connections to transformer terminals, various shapes (rectangular, L-shape, U-shape, custom profiles). Material: C11000 electrolytic tough pitch copper (99.9% Cu), electrical conductivity 100% IACS (58 MS/m), excellent current-carrying capacity. Thickness: 3-15mm typical depending on current rating, width 20-150mm, length 50-500mm.

Applications: Power transformer HV/LV terminals (high voltage and low voltage connections), distribution transformer bushing connections, switchgear bus bar connections, transformer tap changer connections, cable termination at transformers. Current Ratings: 100-10,000A depending on cross-sectional area, temperature rise <30°C at rated current. Advantages: Highest electrical conductivity, excellent thermal conductivity (heat dissipation), reliable bolted connections, long service life 30-40 years.

Brass Transformer Spades

Material: Free-cutting brass C36000 (61.5% Cu, 35.5% Zn, 3% Pb) or cartridge brass C26000 (70% Cu, 30% Zn). Conductivity: 26-28% IACS (brass) versus 100% IACS copper, suitable for low-medium current applications <1,000A. Advantages: Economical versus copper (-30-40% cost), adequate for low-current applications, good corrosion resistance, excellent machinability. Applications: Small distribution transformers <100kVA, control transformers, instrument transformers, low-current connections.

Aluminum Spades

Material: Aluminum alloy 6061-T6 or 6101-T6 (electrical grade), conductivity 55-62% IACS. Advantages: Lightweight (1/3 weight of copper), lower cost than copper (-50-60%), adequate conductivity for many applications. Limitations: Lower conductivity requires larger cross-section (+50% area for same current), galvanic corrosion concerns with copper (requires transition fittings), oxide formation on surface (special connectors needed). Applications: High-current bus bars >1,000A where weight important, overhead transmission connections, large power transformers where cost critical.

Tinned Copper Spades

Design: Copper spades with tin plating 5-15 microns thickness. Advantages: Enhanced corrosion protection (coastal/industrial environments), improved solderability if needed, prevents copper oxidation (maintains low contact resistance), reduces galvanic corrosion with steel hardware. Applications: Outdoor transformers, marine environments, corrosive industrial atmospheres, long-term reliability requirement. Cost: Premium +10-20% versus bare copper.

Silver-Plated Spades

Design: Copper spades with silver plating 2-10 microns over nickel barrier. Advantages: Lowest contact resistance (<0.5 milliohms), highest conductivity connection, prevents oxidation (silver oxide also conductive), premium quality for critical applications. Applications: High-current connections >5,000A, high-voltage transformers >220kV, critical power systems, low-loss requirements. Cost: Premium +40-100% versus bare copper.

Transformer Bushings – Types and Applications

Porcelain Bushings (Ceramic Bushings)

Construction: Central conductor (copper or aluminum) surrounded by paper-oil or resin insulation, porcelain housing providing mechanical strength and electrical insulation, glazed surface shedding water and contamination. Voltage Ratings: Medium voltage 11kV-36kV common, high voltage 66kV-765kV for large power transformers, creepage distance designed per voltage (25-31mm per kV).

Types: Oil-filled bushings (paper-oil insulation for HV applications >145kV), resin-bonded paper bushings (medium voltage 11-145kV), solid porcelain (low-medium voltage). Applications: Power transformer through-wall bushings, distribution transformer terminals, switchgear bushings, circuit breaker bushings, instrument transformer terminals. Standards: IEC 60137, IEEE C57.19.00, ANSI C29 series.

Advantages: Excellent high-voltage insulation (dielectric strength >20kV/mm), outdoor weathering resistance, contamination resistant (smooth glazed surface), long service life 30-40+ years, proven technology 100+ years. Limitations: Brittle (impact damage risk), heavy weight, thermal shock sensitivity (rapid temperature changes).

Epoxy Resin Bushings

Construction: Central conductor encapsulated in cycloaliphatic epoxy resin, molded under vacuum or pressure eliminating voids, sheds designed for creepage distance, lightweight versus porcelain. Voltage Ratings: Low voltage 1-11kV, medium voltage 11-36kV common, some designs to 145kV.

Advantages: Lightweight (1/5-1/10 weight of porcelain), impact resistant (no brittle fracture), moisture resistant (hydrophobic surface), vandalism resistant, lower cost than porcelain for MV. Applications: Distribution transformers 11-36kV, pad-mounted transformers, switchgear bushings, indoor applications, marine and offshore (salt fog resistant). Standards: IEC 60137, IEEE C57.19.03.

Limitations: UV degradation over time (surface chalking), contamination tracking more than porcelain, thermal aging (30-40 year life), limited to medium voltage (porcelain for HV >145kV).

Silicone Rubber Bushings (Composite Bushings)

Construction: FRP (fiberglass reinforced plastic) core for mechanical strength, silicone rubber housing providing insulation and weathering, hydrophobic surface repelling water and contamination, lightweight design. Voltage Ratings: Medium voltage 11-36kV, high voltage designs to 420kV available.

Advantages: Excellent hydrophobic properties (water beading, low leakage current), pollution resistant (contamination less adherent), lightweight (1/8-1/12 porcelain weight), vandalism resistant, excellent salt fog resistance. Applications: Coastal areas and marine environments, high pollution areas (industrial zones), distribution transformers outdoor, railway electrification, overhead line equipment. Limitations: UV aging long-term, higher cost than epoxy resin, surface damage affects performance, relatively new technology (30-year proven life).

Oil-Impregnated Paper Bushings (OIP Bushings)

Construction: Paper-insulated central conductor, oil impregnation, porcelain housing, capacitance grading for high voltage (multiple foil layers controlling electric field). Voltage Ratings: High voltage 66kV-765kV for large power transformers, extra-high voltage (EHV) and ultra-high voltage (UHV) applications.

Advantages: Proven technology for highest voltages, excellent dielectric strength, capacitance grading optimizing electric field distribution, long service life 40+ years. Applications: Large power transformers >100MVA, substation transformers, generator step-up transformers, transmission system interconnections. Maintenance: Periodic oil level checking, moisture monitoring, insulation resistance testing.

Resin-Impregnated Paper Bushings (RIP Bushings)

Construction: Paper insulation resin-impregnated (epoxy), no liquid oil, porcelain or polymer housing, maintenance-free design. Voltage Ratings: Medium voltage 36kV-145kV common. Advantages: Maintenance-free (no oil level monitoring), no leakage concerns, suitable indoor/outdoor, lighter than OIP bushings. Applications: Distribution transformers, industrial transformers, traction transformers, compact substations.

Current Ratings and Bushing Conductor Sizing

Materials and Specifications

Copper Conductors (C11000 ETP)

Composition: 99.9% pure copper (electrolytic tough pitch), oxygen content 0.02-0.04%. Electrical Properties: Conductivity 100% IACS minimum (58 MS/m), resistivity 0.01724 µΩ·m at 20°C, temperature coefficient 0.00393/°C. Mechanical Properties: Tensile strength 220-260 MPa (annealed), elongation 30-45%, hardness 40-60 HRB. Thermal: Thermal conductivity 401 W/(m·K) excellent heat dissipation.

Applications: All high-current transformer connections (highest conductivity), high-voltage bushings (lowest losses), premium quality transformers, critical power systems. Standards: ASTM B187, IEC 60028, IS 1897. Cost: Premium baseline (most expensive conductor material).

Brass Conductors

Free-Cutting Brass C36000: 61.5% Cu, 35.5% Zn, 3% Pb, conductivity 26% IACS, excellent machinability. Cartridge Brass C26000: 70% Cu, 30% Zn, conductivity 28% IACS, superior corrosion resistance. Applications: Low-current transformers <500A, control and instrument transformers, economical applications. Cost: 30-40% lower than copper.

Aluminum Conductors

Alloy 6061-T6: 95.8-98.6% Al, 0.4-0.8% Si, 0.8-1.2% Mg, conductivity 43% IACS. Alloy 6101-T6: Electrical grade, conductivity 55-62% IACS, optimized for electrical applications. Advantages: 1/3 weight of copper, 50-60% lower cost, adequate conductivity for many applications. Limitations: Requires 60% larger cross-section than copper for same current, special connectors for aluminum-to-copper transitions.

Porcelain/Ceramic Materials

Composition: Alumina silicate ceramic, fired at 1,300-1,400°C. Properties: Dielectric strength 15-30 kV/mm, mechanical strength compression 500-800 MPa, thermal shock resistance good, surface glazing smooth impermeable. Standards: IEC 60672, ANSI C29.1. Types: C-110 porcelain (low voltage), C-120 (medium voltage), C-130 (high voltage).

Epoxy Resins

Types: Cycloaliphatic epoxy resins (hydrophobic, UV stable), anhydride-cured systems. Properties: Dielectric strength 16-20 kV/mm, tracking resistance PTI >600, moisture absorption <0.2%, temperature rating Class F (155°C). Standards: IEC 60137, IEEE C57.19.03.

Silicone Rubber

Composition: Polydimethylsiloxane (PDMS) with silica fillers. Properties: Hydrophobicity excellent (water contact angle >110°), tracking resistance, temperature range -50°C to +200°C, UV resistance good. Advantages: Hydrophobic recovery (contaminated surface self-cleans over time), flexibility preventing brittle fracture.

Manufacturing Processes

Transformer Spade Manufacturing

Copper Bar Stock: Electrolytic copper bar C11000 per ASTM B187, cut to required length, annealed if needed (soft temper for forming). CNC Machining: Drilling mounting holes (tolerance ±0.1mm), milling slots or profiles, facing surfaces for flatness (±0.05mm), chamfering and deburring. Stamping/Punching: High-volume production (>10,000 pieces), progressive dies cutting and forming, faster than machining for simple profiles.

Surface Preparation: Cleaning degreasing (alkaline wash), surface preparation for plating, etching or micro-etching for adhesion. Electroplating: Tin plating 5-15 µm for corrosion protection, silver plating 2-10 µm over nickel barrier, nickel plating 5-10 µm barrier layer. Inspection: Dimensional verification (CMM or calipers), flatness measurement, hole position and size, surface finish, conductivity testing.

Porcelain Bushing Manufacturing

Core Assembly: Central conductor (copper/aluminum tube or bar), paper insulation wrapping (resin-impregnated or oil-impregnated), capacitance grading foils for HV (controlling electric field), vacuum processing removing moisture and air. Porcelain Shell: Wet process porcelain forming or isostatic pressing, firing at 1,300-1,400°C (vitrification), glazing and re-firing (smooth surface), precision grinding flanges and contact surfaces.

Assembly: Inserting core into porcelain shell, sealing with gaskets and compound, oil filling for OIP bushings (vacuum oil filling), pressure testing and leak detection. Terminal Fittings: Copper or brass terminals attached (top and bottom), tinned or silver-plated contact surfaces, hardware (nuts, washers, insulators).

Testing: Routine tests (voltage withstand, partial discharge, capacitance/tan delta), type tests (temperature rise, impulse voltage, mechanical tests, sealing tests per IEC 60137), quality documentation.

Epoxy Resin Bushing Manufacturing

Conductor Preparation: Copper or aluminum conductor machining, surface treatment for resin adhesion. Mold Preparation: Aluminum or steel molds precision machined, mold release application, conductor positioning in mold. Resin Casting: Cycloaliphatic epoxy resin mixing (resin + hardener + fillers), vacuum degassing removing air bubbles, casting under vacuum or pressure, curing cycle (temperature and time programmed).

Demolding: Cooling to room temperature, mold separation, shed design molded into bushing body. Finishing: Trimming flash, drilling mounting holes if required, surface inspection and cleaning, conductivity testing.

Testing: Voltage withstand testing, partial discharge testing <10pC at rated voltage, tracking resistance testing, dimensional verification.

Silicone Rubber Bushing Manufacturing

Core Manufacturing: FRP core (fiberglass-epoxy) wound or pultruded, conductor installation through core. Silicone Rubber Molding: Injection molding or compression molding silicone rubber over core, shed geometry designed for creepage distance, vulcanization curing silicone rubber, demolding and trimming.

Terminal Assembly: Metal end fittings attached (compression or bonding), sealing gaskets and O-rings, hardware installation. Testing: Hydrophobicity testing (water spray test), voltage withstand, partial discharge, mechanical strength tests.

Applications by Industry

Power Generation and Transmission

Large Power Transformers: HV bushings 66-765kV (oil-impregnated paper OIP bushings), current ratings 1,000-10,000A, porcelain housed, capacitance graded. Generator Step-Up Transformers: Generator voltage to transmission voltage (11-25kV to 132-765kV), high-current LV bushings 5,000-20,000A, HV bushings to 765kV. Substation Transformers: Transmission to distribution voltage reduction, outdoor bushings weathering resistant, oil-filled or resin bushings.

Spade Applications: Generator terminal connections (large copper spades 3,000-20,000A), transformer HV/LV bushing connections, bus bar to transformer connections, switchgear interconnections. Standards: IEC 60137, IEEE C57.19.00, temperature rise <30°C.

Power Distribution

Distribution Transformers: Pole-mounted 11-36kV distribution, pad-mounted transformers residential/commercial, epoxy resin bushings common (lightweight, economical), current ratings 100-800A typical. Network Transformers: Underground distribution networks, submersible bushings (epoxy resin), compact design urban installations.

Spades: Distribution transformer terminals (copper or brass 100-600A), cable termination spades, loadbreak connector spades. Voltage: 11kV, 22kV, 33kV distribution voltages common.

Industrial Facilities

Industrial Transformers: Manufacturing plants 11-33kV, heavy industry power supply, rectifier transformers (DC conversion), furnace transformers (electric arc furnaces). Indoor Installation: Epoxy resin bushings preferred (impact resistant, lightweight), dry-type transformer connections, cast resin transformers.

Requirements: Compact design space-limited, pollution resistant industrial environment, maintenance-free operation, reliable 30-40 year service life.

Renewable Energy

Wind Turbines: Step-up transformers in nacelle or base (690V to 11-36kV), outdoor bushings weathering resistant (silicone rubber excellent), compact lightweight (epoxy resin). Solar Inverters: Inverter step-up transformers (480V to 11-36kV), pad-mounted transformers solar farms, DC-rated bushings (solar collection systems).

Requirements: Outdoor weathering resistance, wide temperature range -40°C to +60°C, pollution resistant (desert dust, coastal salt), long maintenance-free life.

Railway and Transportation

Railway Electrification: Traction transformers 25kV AC or 1.5-3kV DC, through-wall bushings compact design, silicone rubber bushings (excellent pollution resistance). Metro Systems: Rectifier transformers AC to DC conversion, compact indoor substations, epoxy resin bushings.

Electric Vehicles: On-board transformers and chargers, compact lightweight bushings, voltage ratings 400-800V DC increasing.

Oil and Gas

Offshore Platforms: Power distribution transformers, salt fog environment (marine atmosphere), silicone rubber or porcelain bushings with enhanced creepage, explosion-proof requirements hazardous areas. Refineries: Process power transformers, corrosive atmosphere (H2S, hydrocarbons), stainless steel or special coated fittings.

Requirements: Extreme corrosion resistance, hazardous area certification (ATEX, IECEx), long-life requirement (30-40 years – replacement extremely expensive offshore).

Technical Standards and Specifications

IEC Standards

IEC 60137: Insulated bushings for alternating voltages above 1,000V, dimensional standards, electrical requirements (voltage withstand, partial discharge), mechanical requirements (cantilever strength), thermal requirements (temperature rise), test procedures (routine and type tests). IEC 60815: Selection and dimensioning of high-voltage insulators, creepage distance determination based on pollution severity, unified specific creepage distance (USCD) 16-31mm/kV.

IEC 60060: High-voltage test techniques (impulse voltage, power frequency), test voltage levels and procedures. IEC 61109: Composite insulators for AC overhead lines (applicable to silicone rubber bushings).

IEEE Standards

IEEE C57.19.00: General requirements for liquid-immersed distribution, power, and regulating transformers (includes bushing specifications). IEEE C57.19.01: Performance characteristics and dimensions for outdoor apparatus bushings. IEEE C57.19.03: Requirements for distribution apparatus bushings.

ANSI Standards

ANSI C29.1: Test methods for electrical power insulators. ANSI C76: Bushings for use in electrical equipment. ANSI C57.12.00: General requirements for liquid-immersed distribution, power, and regulating transformers (bushing requirements).

International Voltage Levels

Low Voltage: <1kV (400V, 690V industrial). Medium Voltage: 1-52kV (11kV, 22kV, 33kV distribution common). High Voltage: 52-245kV (66kV, 132kV, 220kV transmission). Extra High Voltage: 245-800kV (400kV, 500kV, 765kV). Ultra High Voltage: >800kV (1,000kV, 1,100kV China/India).

Quality and Safety Standards

ISO 9001:2015: Quality management system for manufacturing. RoHS Directive: Restriction of hazardous substances (lead-free compliance required for some markets). REACH: Chemical substance registration and restriction.

Advantages of Quality Transformer Spades and Bushings

Superior Electrical Performance

Low Contact Resistance: Copper spades <0.5 milliohms contact resistance, silver-plated <0.3 milliohms (lowest losses), tin-plated <1 milliohm adequate most applications. High Current Capacity: Proper sizing prevents overheating (temperature rise <30°C at rated current), copper highest current density 2-4 A/mm² (natural air cooling).

Insulation Integrity: Bushings provide reliable high-voltage insulation (dielectric strength >20kV/mm porcelain, >16kV/mm epoxy), partial discharge <10pC at rated voltage (indicating void-free insulation), long-term insulation stability (30-40 year life).

Mechanical Reliability

Robust Construction: Porcelain bushings withstand mechanical loads (cantilever strength 5-50kN depending on size), earthquake resistant design (seismic zones), vandalism resistant (porcelain and epoxy impact resistant). Secure Connections: Bolted spade connections reliable (proper torque 20-100 N·m depending on size), lock washers and spring washers preventing loosening, thermal cycling stable (copper CTE 16.5 µm/m·°C).

Environmental Durability

Outdoor Weathering: Porcelain glazed surface resistant rain/sun/pollution, silicone rubber hydrophobic preventing leakage current, epoxy resin moisture resistant, temperature cycling -40°C to +60°C outdoor. Corrosion Resistance: Tin plating corrosion protection coastal/industrial, silver plating oxidation prevention, stainless steel hardware corrosive atmospheres.

Long Service Life

Expected Life: 30-40 years typical transformer bushings properly maintained, 40+ years copper spades (corrosion resistant), routine maintenance minimal (inspection, cleaning, hardware tightening).

Quality Control and Testing

Material Verification

Copper Conductivity: Four-point measurement verifying 100% IACS minimum for C11000 copper, 95-100% IACS acceptable (depends on temper and processing). Composition Analysis: OES or XRF verifying copper purity, brass composition, aluminum alloy verification. Mechanical Testing: Tensile strength testing sample conductors, hardness testing Brinell or Rockwell.

Dimensional Inspection

Spade Dimensions: Caliper or CMM inspection thickness ±0.1mm, width ±0.2mm, length ±0.5mm, hole diameter ±0.1mm, hole position ±0.2mm, flatness ±0.1mm over length. Bushing Dimensions: Critical dimensions per IEC/IEEE standards (creepage distance, striking distance, flange dimensions), contact surface dimensions ±0.2mm.

Electrical Testing

Routine Tests (Every Bushing): AC voltage withstand test 2× rated voltage 1 minute (or 2.5× rated 1 second), partial discharge measurement <10pC at 1.2× rated voltage, capacitance and tan delta measurement (power factor <0.5%). Type Tests (Certification): Temperature rise test at rated current (ΔT <30°C), impulse voltage test (BIL – Basic Impulse Level), mechanical tests (cantilever load, torsion), short-time current test, radio interference voltage test.

Spade Testing: Contact resistance measurement (four-wire Kelvin method), conductivity verification, continuity testing.

Insulation Resistance

Bushings: Insulation resistance >10,000 MΩ at rated voltage, measured at installation and periodically, declining IR indicating moisture ingress or aging. Megger Testing: 5kV or 10kV megger test for MV bushings, 1kV megger for LV spades and connections.

Surface Inspection

Visual Inspection: Porcelain chips, cracks, glaze defects (reject criteria), epoxy surface voids or contamination, plating coverage and adhesion (spades). Quality Acceptance: IEC 60137 acceptance criteria for bushings, zero defects policy for safety-critical components.

Why Choose Our Transformer Spade and Bushing Services

Three Decades of Expertise

Established 1990: 30+ years manufacturing transformer spades, bushings, and electrical components for power utilities, transformer manufacturers, switchgear OEMs across 25+ countries. Experience: Low voltage to high voltage 765kV, distribution to large power transformers, custom designs for special applications. Quality: 98% on-time delivery, <0.3% defect rate, zero field failures from manufacturing defects. Certifications: ISO 9001:2015, IEC 60137 compliant manufacturing, working towards IECEx certification.

Complete Product Range

Transformer Spades: Copper C11000 (100% IACS conductivity), brass C36000/C26000 economical, aluminum 6061/6101 lightweight, current ratings 100-10,000A, custom profiles and dimensions. Surface Finishes: Bare copper, tin-plated (corrosion protection), silver-plated (premium lowest resistance), nickel-plated (barrier layer).

Bushings: Porcelain bushings 11-420kV (oil-impregnated paper OIP, resin-impregnated RIP), epoxy resin bushings 1-36kV (economical distribution), silicone rubber bushings (pollution resistant outdoor). Current Ratings: 100A to 6,000A bushing conductors, higher ratings available custom.

Manufacturing Capabilities

Machining Centers: 15+ CNC machines precision machining copper/brass spades, tolerances ±0.05-0.2mm, drilling, milling, facing operations. Stamping Lines: High-volume progressive dies for standard spades (>10,000 pieces economical), faster production rates than machining. Bushing Production: Porcelain manufacturing and glazing, epoxy resin casting under vacuum, silicone rubber molding, complete assembly and testing.

Engineering Support

Design Services: Custom spade profiles optimized for your transformer design, bushing selection guidance (porcelain vs epoxy vs silicone), current and voltage rating calculations, thermal analysis and sizing. Testing Support: Routine testing per IEC 60137, type testing through accredited laboratories, witness testing available for critical orders.

Quality Assurance

Material Verification: OES composition analysis copper/brass, conductivity testing every production lot, mechanical testing sample components. Electrical Testing: Every bushing voltage withstand tested 2× rated voltage, partial discharge testing <10pC, insulation resistance >10,000 MΩ. Dimensional Inspection: CMM inspection critical dimensions, first article inspection complete verification, 100% visual inspection. Certification: IEC 60137 compliance certificates, material certificates per ASTM/IEC standards, test reports (routine and type tests), traceability documentation.

Competitive Pricing

Cost Advantage: 30-40% savings versus European/North American suppliers, competitive with Asian manufacturers offering superior quality and certifications. Transparent Pricing: Copper spades $5-$50 per piece depending on size/finish, brass spades $3-$20, bushings $50-$5,000 depending on voltage/type. Volume Discounts: >100 pieces: 15-20% discount, >1,000 pieces: 20-30%, annual contracts available.

Global Service

Worldwide Export: Asia (40%), Europe (25%), Middle East (20%), Africa (10%), others (5%). Lead Times: Standard spades 2-4 weeks, custom spades 4-6 weeks, standard bushings 6-10 weeks, custom HV bushings 12-16 weeks. Documentation: Material certificates, test certificates per IEC/IEEE, country of origin, packing lists, technical data sheets.

Frequently Asked Questions

Q1: What is the difference between porcelain and epoxy resin bushings? Porcelain Bushings: Ceramic construction fired at 1,300°C, voltage ratings 11kV to 765kV (full range), proven technology 100+ years, excellent pollution resistance (glazed surface), long service life 40+ years, outdoor weathering superior, heavy weight, brittle (impact damage risk), higher cost for MV. Epoxy Resin Bushings: Cycloaliphatic epoxy molded construction, voltage ratings 1-36kV typically (limited to MV), lightweight (1/5-1/10 porcelain weight), impact resistant (no brittle fracture), moisture resistant hydrophobic, lower cost for MV, UV aging long-term (surface chalking 15-20 years), tracking more susceptible than porcelain. Selection: Porcelain for high voltage >36kV, outdoor applications requiring maximum weathering resistance, long-life critical applications; Epoxy resin for distribution transformers 11-36kV, indoor applications, cost-sensitive applications, weight-limited installations (pole-mount transformers).

Q2: Why use copper spades instead of aluminum for transformer connections? Copper Advantages: Highest electrical conductivity 100% IACS (aluminum 55-62% IACS), requires smaller cross-section for same current (60% less area than aluminum), higher mechanical strength (copper 220 MPa vs aluminum 150 MPa), easier connections (no special compounds needed), no galvanic corrosion with copper conductors (most transformer windings copper), long proven history 100+ years. Aluminum Advantages: Lightweight (1/3 copper weight), lower cost (-50-60% versus copper), adequate conductivity for many applications. Copper Recommended: High-current connections >1,000A where space limited, critical connections requiring lowest resistance, copper transformer windings (no dissimilar metal junction), quality premium transformers. Aluminum Acceptable: Very high current >5,000A where weight significant, large power transformers where cost critical, proper aluminum-to-copper transition fittings used. Most Common: Copper spades used 80-90% of transformer applications (superior electrical and mechanical properties justify cost).

Q3: What current rating do I need for transformer spades? Calculation: Current rating = Transformer kVA × 1,000 ÷ (Voltage × √3) for three-phase, ÷ Voltage for single-phase. Example: 1,000 kVA transformer, 11kV, three-phase: Current = 1,000,000 ÷ (11,000 × 1.732) = 52.5A (use minimum 60-80A spades). Safety Factor: Size spades 1.5-2× calculated current for safety margin, transformer inrush current 5-10× rated (momentary), continuous overload capability 20-30%. Cross-Section: Copper 2-4 A/mm² natural air cooling, higher current density forced cooling. Temperature Rise: <30°C at rated current per IEEE standards, excessive temperature reduces insulation life, loose connections cause localized heating (hot spots). Standard Sizes: 100A (10-15mm² copper), 200A (20-30mm²), 400A (40-60mm²), 800A (80-120mm²), 1,600A (160-250mm²). Recommendation: Provide transformer kVA, voltage, and phase – we calculate and recommend proper spade size and thickness ensuring safe operation.

Q4: How long do transformer bushings last, and what maintenance is required? Expected Life: Porcelain bushings 40+ years properly maintained (oldest in service 70+ years), epoxy resin bushings 30-40 years (UV aging limits to ~40 years), silicone rubber bushings 30+ years proven (technology relatively new – 40 years expected). Maintenance: Annual Inspection – visual inspection for cracks, chips, flashover traces, hardware tightness check (torque verification), cleaning pollution from surface (high-pressure water wash). Periodic Testing (3-5 years) – insulation resistance testing (megger), tan delta measurement (power factor <0.5% acceptable, increasing indicates aging), oil level check for OIP bushings (top-up if needed). Thermography – infrared scanning detecting hot spots (poor connections, high resistance), perform during peak load. Failure Indicators: Decreasing insulation resistance (<1,000 MΩ investigate), increasing tan delta (>1% concerning, >2% replace), visible cracks or chips (immediate replacement), oil leakage (OIP bushings – immediate attention). Lifetime Extension: Proper maintenance extends bushing life, early detection prevents catastrophic failure (transformer fire), routine cleaning essential polluted environments (coastal, industrial). Replacement: Replace bushings if mechanical damage, electrical degradation, approaching end of design life (40 years typical).

Q5: What quality certifications and testing do you provide for bushings? Material Certification: Copper conductivity certification 100% IACS per ASTM B187/IEC 60028, brass composition per ASTM B16/B36, porcelain material per IEC 60672, epoxy resin specification and properties. Routine Testing (Every Bushing): AC voltage withstand test 2× rated voltage 1 minute per IEC 60137, partial discharge measurement <10pC at 1.2× rated voltage, capacitance and tan delta measurement (documentation power factor <0.5%), insulation resistance >10,000 MΩ at rated voltage, visual inspection per IEC acceptance criteria. Type Testing (Design Certification): Temperature rise test at rated current (ΔT <30°C), lightning impulse voltage test (BIL per IEC 60060), wet power frequency voltage test (simulating rain), mechanical cantilever test (withstand load per IEC 60137), short-time current test (10× rated 1-3 seconds), radio interference voltage test. Test Certificates: Individual bushing test certificate with serial number, test voltage, partial discharge, capacitance/tan delta values, insulation resistance, inspector signature and date. Standards Compliance: IEC 60137 fully compliant manufacturing and testing, IEEE C57.19 dimensional compliance, ANSI standards for North American market. Quality System: ISO 9001:2015 certified, documented procedures, calibrated test equipment (annual calibration traceable), full traceability batch to installation, technical support and failure analysis.
